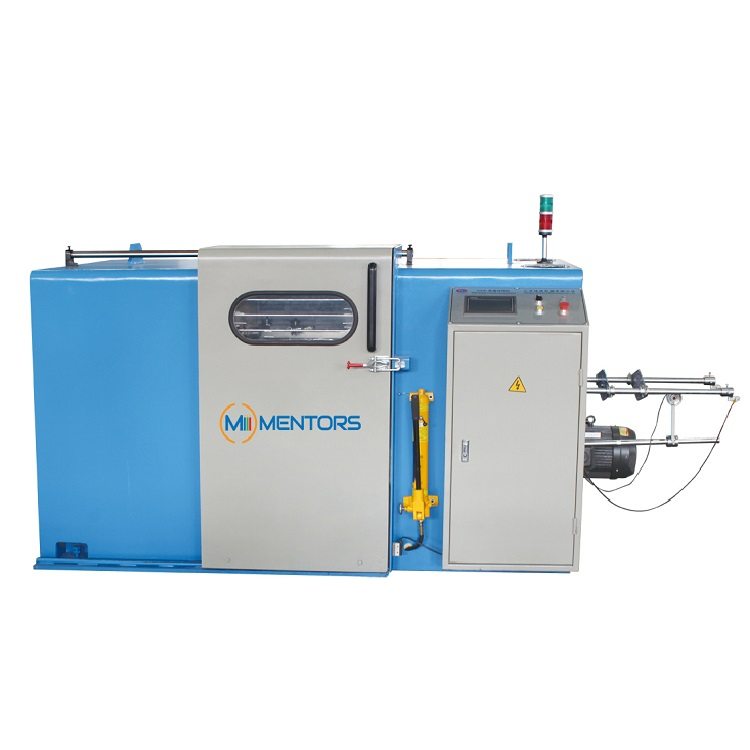

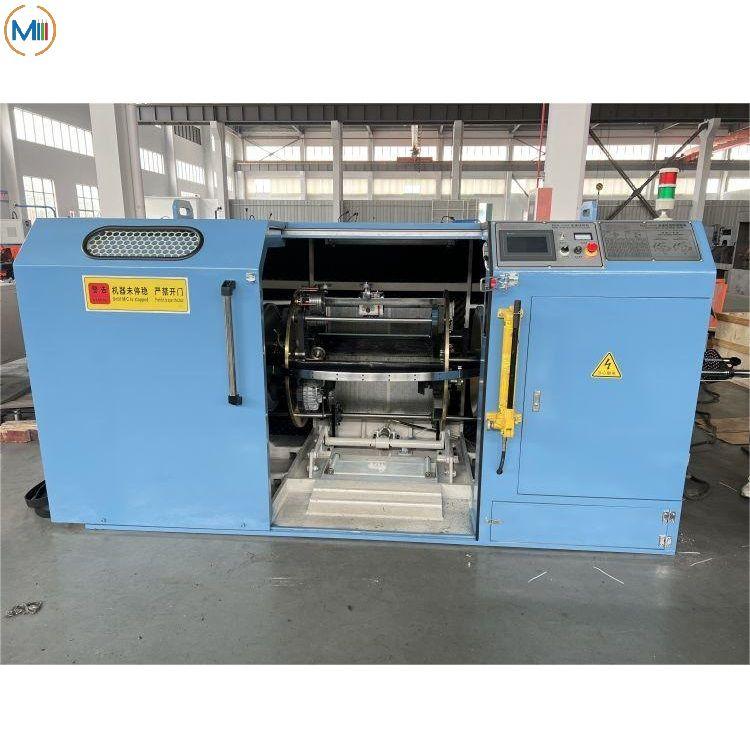

Wire Buncher Machine
This type is used for twisting copper wires more than 7 wires.
Main feature:
1)Types: 300,500,630,800
2)Max speed: 2500-3000r/min
3) Raw material: copper wire, tin coated wire
4) Twisting type: double twist
Description
1. Application:
This type machine is mainly used for annealed twisting copper wire.
2-Parameters:
| Machine type | SY-300P | SY-500P | SY-500P/B | SY-650P | SY-800P |
| Use | For bunching bare copper, tinned wire, enameled wire | ||||
| Control type | PPLC+HMI+Inverter control | ||||
| Twisting section area((mm²) | 0.035～0.45 | 0.05～2.50 | 0.05～4.00 | 0.18～6.00 | 2.50～16.00 |
| Copper wire dia.(mm) | Ф0.05～Ф0.25 | Ф0.10～Ф0.45 | Ф0.10～Ф0.52 | Ф0.18～Ф1.00 | Ф0.50～Ф1.20 |
| Twisting direction | S or Z | ||||
| Take-up tension | tension controlled by magnetic clutch | ||||
| Max main shaft speed | 3000r/min | 3000r/min | 2500r/min | 2000r/min | 1200r/min |
| Traversing type | Transverse and distance can be adjusted by bearing transverse | ||||
| Bearing lubrication | lubricating nipple with high temperature oil | Thin oil lubrication, circulation cooling | |||
| Bobbin loading&unloading type | Hydraulic type | ||||
| Max bobbin dia. | Ф300 | Ф500 | Ф500 | Ф630 | Ф800 |
| Auto stop unit | While reach setting length, inside outside wire break, or other error auto stops | ||||
| Brake | Magnetic brake | ||||
| Motor power(KW) | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Main shaft center height | 630mm | 700mm | 700mm | 850mm | 900mm |
3.Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
3) Take-up tension is controlled by magnetic powder clutch or mechanical type.
4) If the wire breaks, the machine can stop automatically.

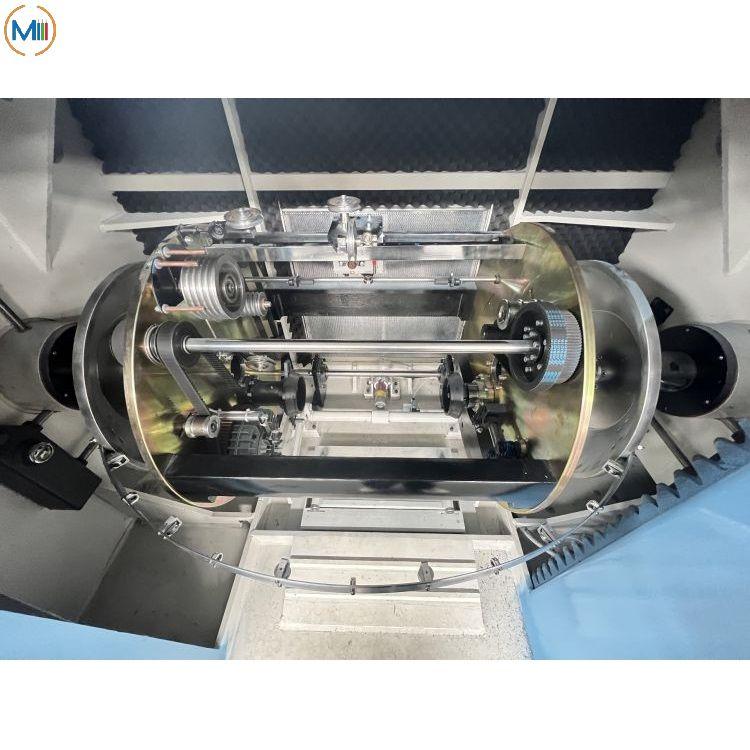

4.Machine structure:
1.Main machine: The frame of Wire Buncher Machine is welded by high quality steel plate, after annealing, and precise machinery.
2.Tension control: magnetic powder clutch.
3.Motor control: inverter controlled, it can be changed from zero to max. Speed freely, speeder shows current speed.
4.Automatically stop: When the counter reaches your desired length, the Wire Buncher Machine will stop automatically if the wire breaks an abnormal alarm and self-actuating brake.
5.Electric control: With scientific and reasonable design,sensitive respond,featuring precision and convenience to operate.
5.Delivery time: 45 working days
6.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7.Guarantee: 12 months since shipping date(exclude easily wearing part)
