1. Over View:

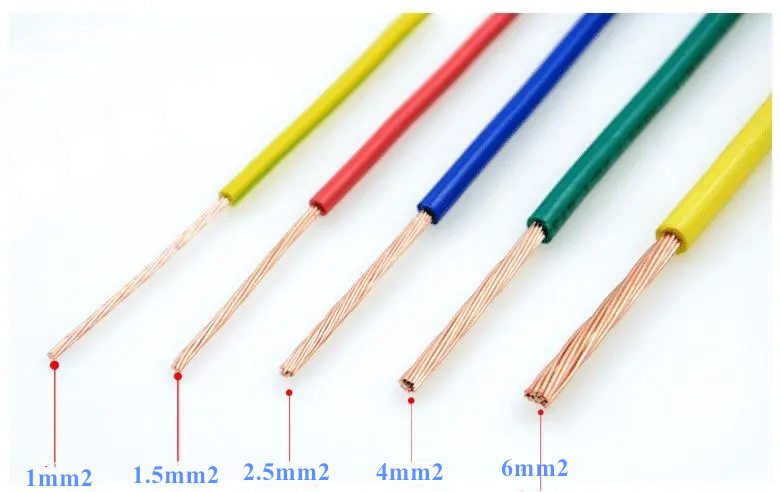

There are four common types of domestic cable: 1.5 square mm, 2.5 square mm, 4 square, and 6 square mm.
The wire used is determined by different functional areas and electrical power points.

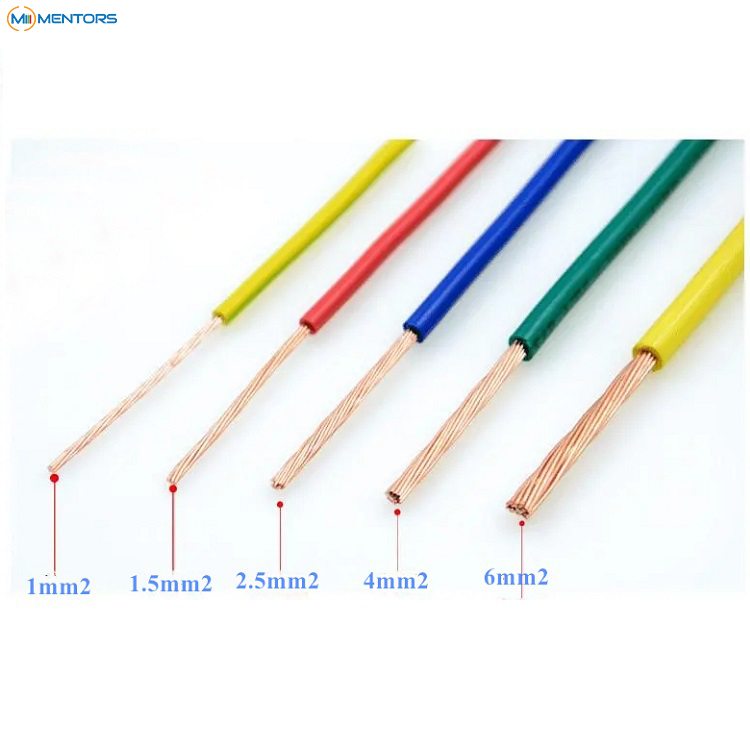

2.Final Product:

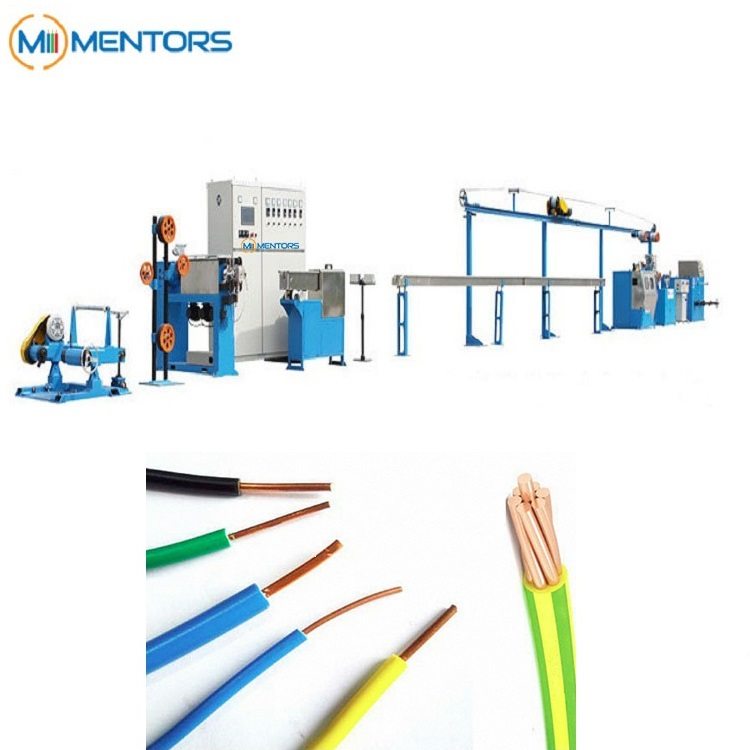

3.Production Flow and Domestic Cable Making Machine

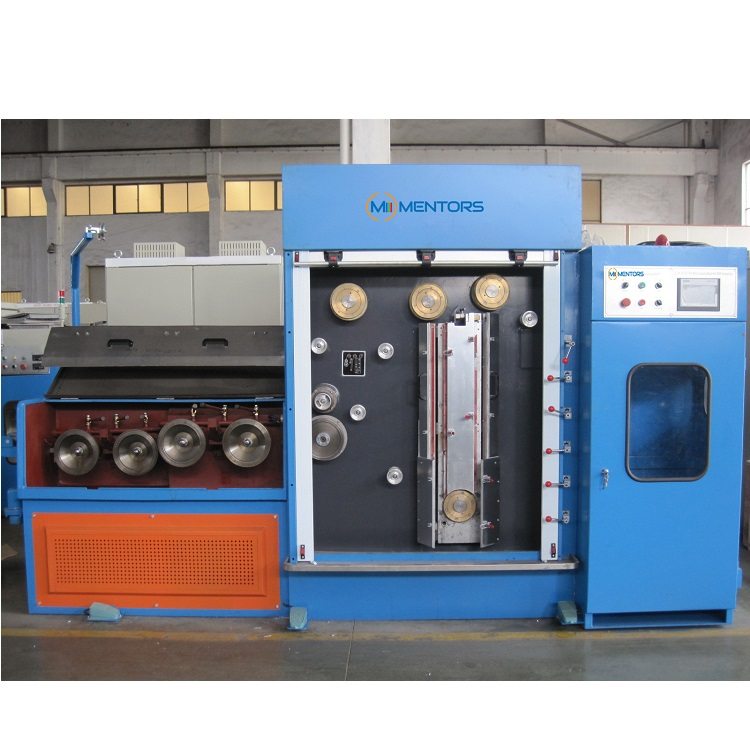

3.1 Wire Drawing Machine with Annealing to produce fine wire from 0.20-0.30mm (Click on the picture to view product details)
| Inlet diameter | 0.6- 1.2mm |
| Out diameter | 0.15- 0.32mm |
| Drawing line speed | 1800mpm/max |
| Slip ratio of m/c | 15% |
| Fix speed capstan slip ratio | 8% |
| Frame | Welded by steel plate |
| Capstan | Ceramic plasma capstan |
3.2 Twisting multi wires to be one group by Double Twist Bunching Machine (Click on the picture to view product details)
3.2 Outer Insulation by Extruder Machine (Click on the picture to view product details)
4. Main specification:
1. Complete external diameter: Φ2mm-Φ7mm(core wire is soft or flexible wire)
2. Concentricity: Above 95%
3. Extrusion capacity: 130KG/HR
4. Extrude line speed: Max 300M/Min
5. Machine center height: 1000mm
6. Power source: 380V 50HZ (according to your requirement)
