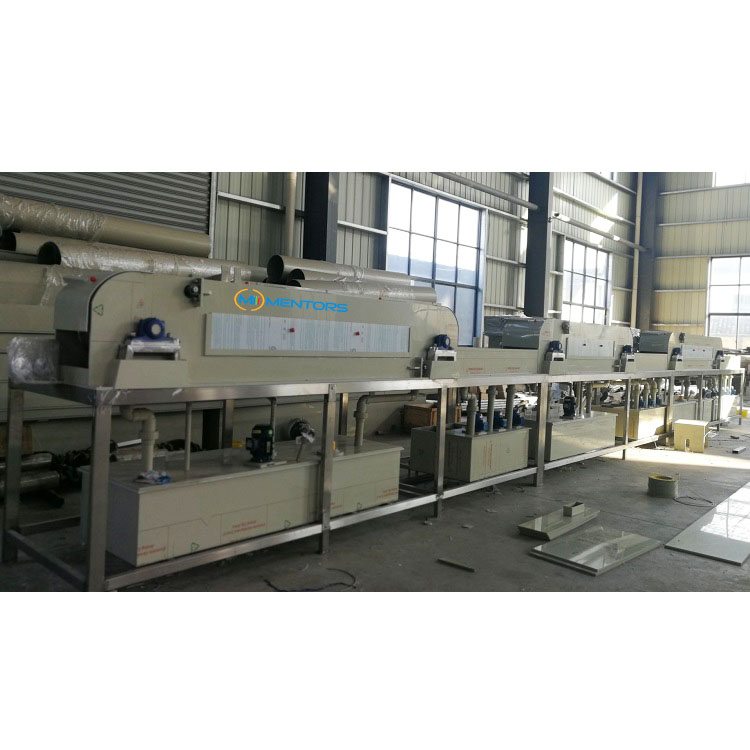

Copper Wire Tin Plating Machine
Main feature:
1.Line Speed: 2.5 m/s
2.Coating Thickness:1-25 um
3.Plating Material:Sn
0086-13962242532
sunman@mentorsmachinery.com
Main feature:
1.Line Speed: 2.5 m/s
2.Coating Thickness:1-25 um
3.Plating Material:Sn
1. Application:

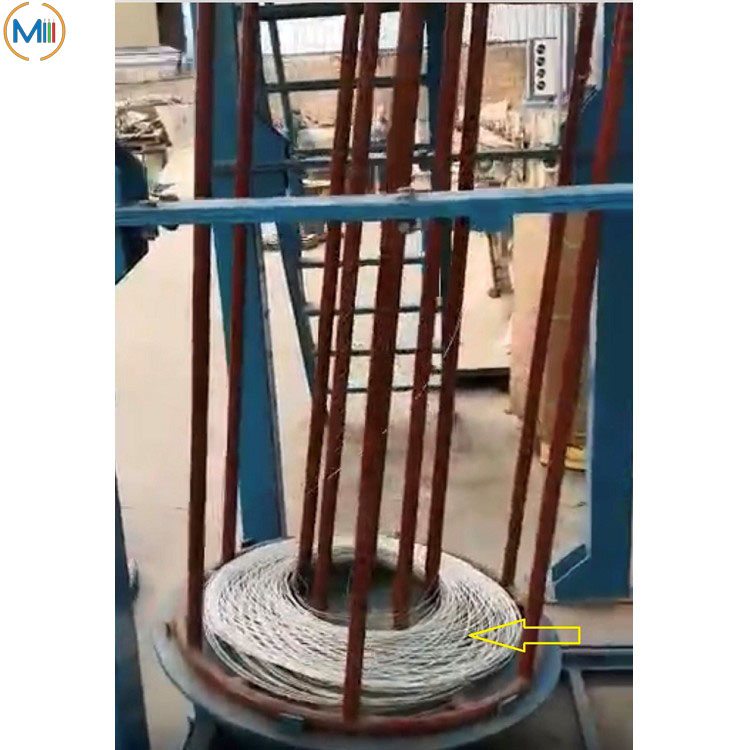

Copper Wire Tin Plating Machine is used for tin plating on the surface of copper wire, and the finished wire can be used for continuous drawing by multi-head wire drawing machine.
2.Parameters:
Machine Type | SY – 3000 Sn-2m/s |
Length(mm) | 25000 |
Width(mm) | 1500 |
Height(mm) | 1800 |
Weight(Excluding the liquid) (kg) | 5000 |
Weight(Including the liquid) (kg) | 9000 |
Wire No | 1 |
Line Speed | 2.5 m/s (max) |
Raw Material | Copper wire |
Diameter Range(mm) | 1.2-3 mm |
Material Requirement | low oil and non-oxidizing |
Plating Material | Sn |
Coating Thickness | 1-25 um |
Total Power | Approx 60 kw |
Voltage | 3 x 380 V, 50 Hz |
Control Voltage | 24 V DC, 220 V AC |
Electrical Equipment | acc. to VDE and VBG 4 |
Maximum Ambient Temperature | 45°C |
Noise Level | 85 dB (A)(max) acc. to DIN 45635 |
Plating Current | 3000 A, 12 V |
Alkaline Electrolysis
Acid Electrolysis Current |
200 A, 12 V |
Plating Immersion Length(m) | 300 |
Acid Electrolysis
Alkali Electrolysis Immersion length(m) |
60 |
3.Advantages:
1. A level PP engineering plastic: Chemical anti-corrosion, high density, not easy to deform, durable.

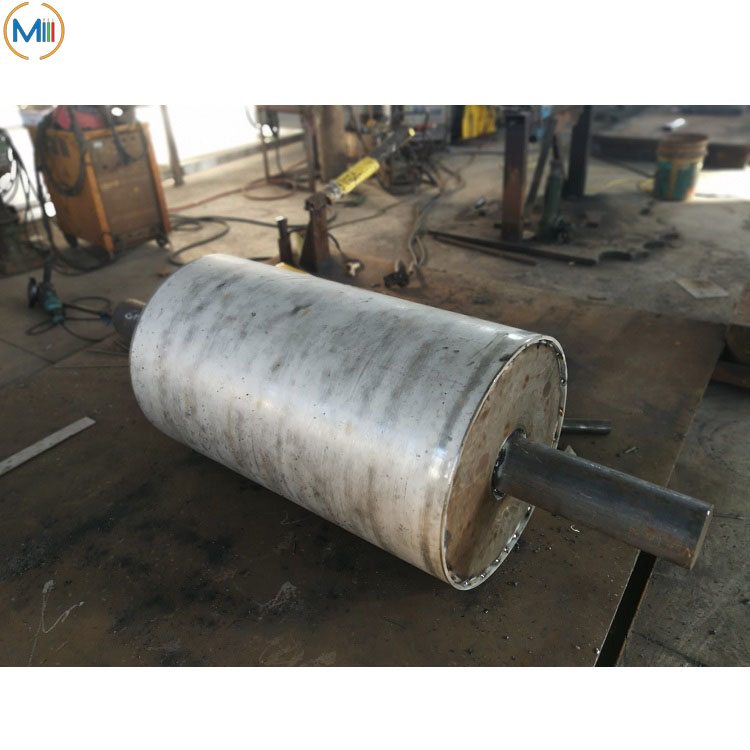

2. All Plating wheels of Copper Wire Tin Plating Machine are made of stainless steel 316L.

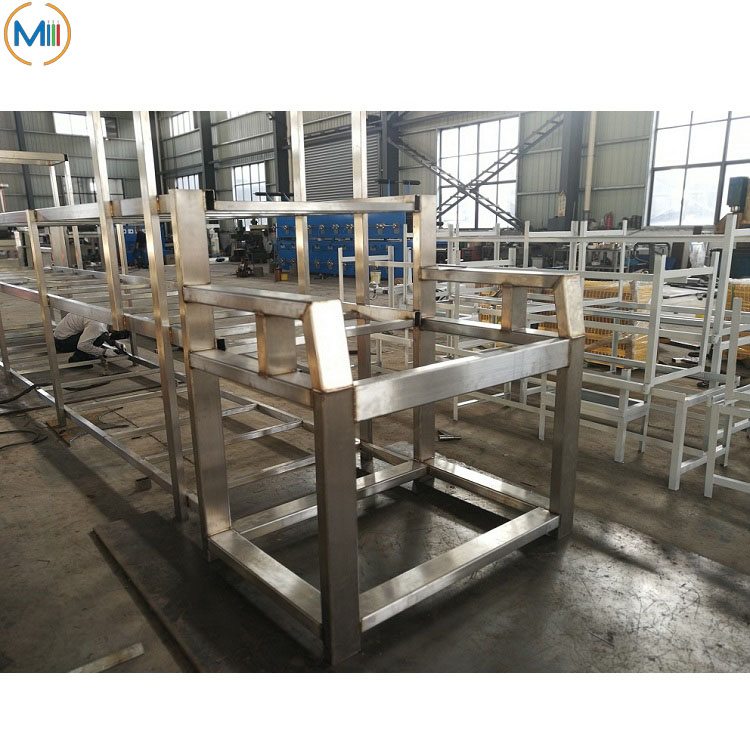

3. All machine stand is 304 stainless steel.
4. Taiwan brand acid and alkali resistant corrosion resistant pump.
5. Very professional team can offer the whole solutions for ensure finished product is qualified.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
