Two motor with inverter controlled, energy saving.

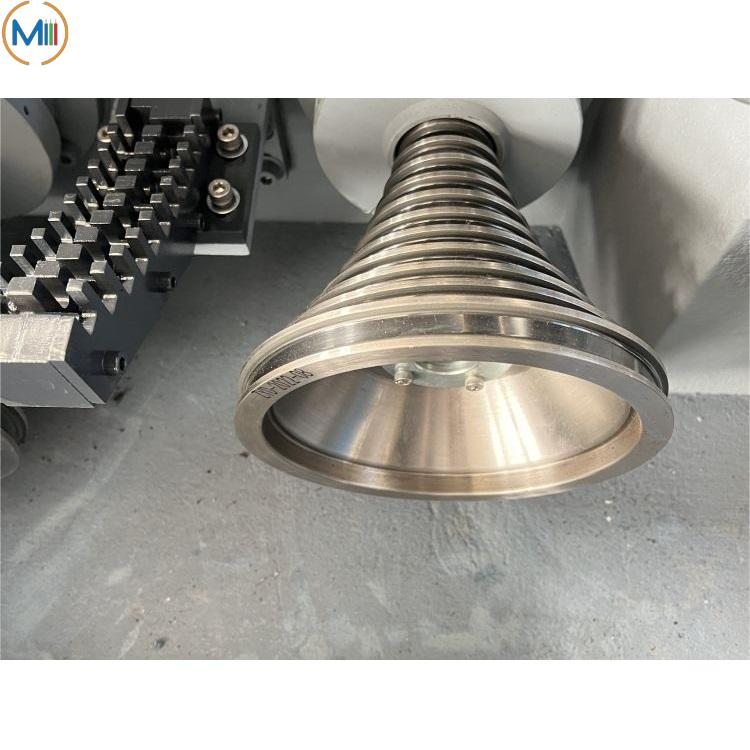

The movable water pipe joint lubrication is installed above the wire drawing capstan and the wire drawing die, which does not affect the threading operation.
The first and last die are lubricated with independent piping.
Main feature:
1) Max.Dies Qty: 28
2) Outlet wire size: 0.15-0.32 mm
3) Max speed: 2500 m/min
4) Dual Inverter control
1. Application:

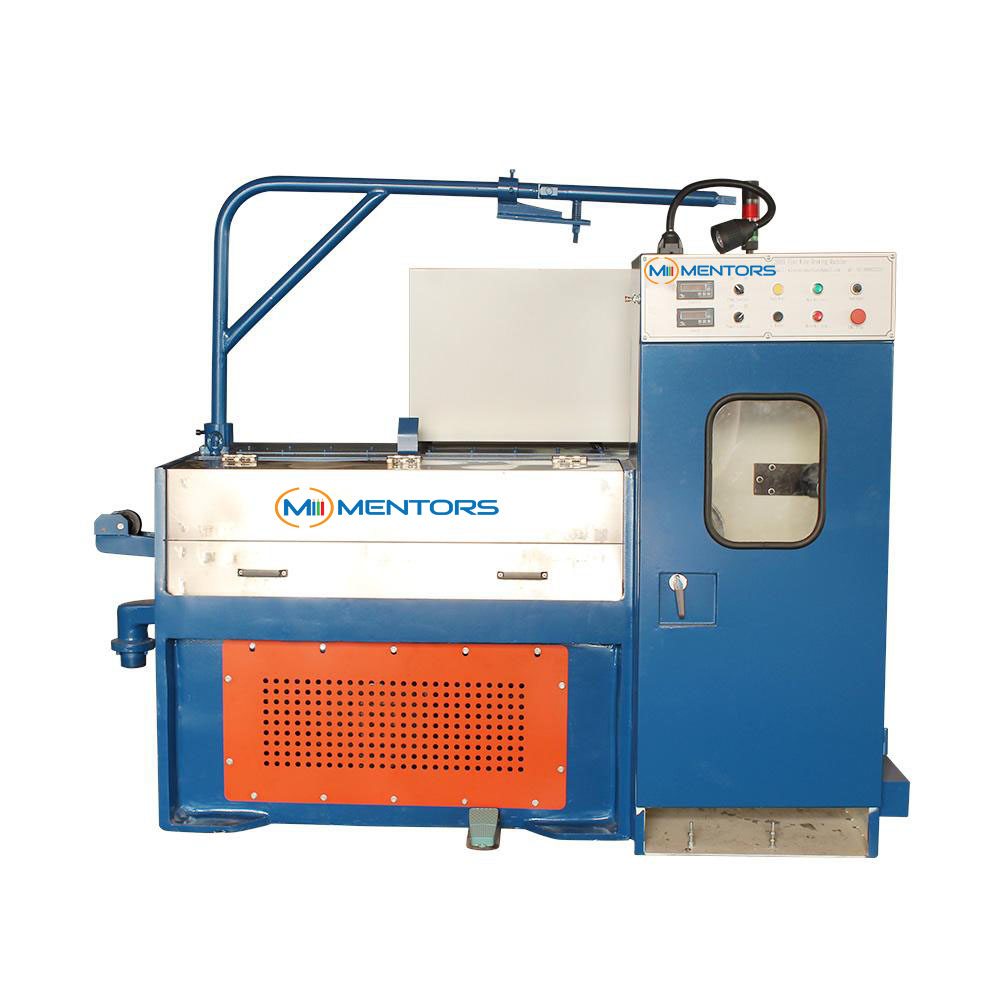

Copper Wire Making Machine is used for drawing fine copper wire 0.15-0.32 mm from max input wire 1.38 mm.
2.Parameters:
| Machine type | SY-28DHB |
| Control system | Traditional analog type |
| Inverter control | Dual Inverter control |
| Drawing dies No./Max. | 28 |
| Inlet diameter | 1.38 mm |
| Outlet diameter | 0.15- 0.32 mm |
| Drawing line speed | 2500 m/min |
| Main motor | 15 KW |
| Spooler motor | 4 KW |
| Spool bobbin size | 300-400 mm |
| Brake | Magnetic brake |
3.Advantages:
(1) Double drivers ensure precisely tension and minimum ratio of the wire.
(2) Easy string-up and maintenance operations.
(3) Energy saving and excellent wire surface quality.
(4) Best choice for diversify products manufacturer.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
