Copper Wire Electrolytic Tinning Machine
Main feature:
(1) Speed: 250m/min
(2) Coating Thickness: 1-20um
(3) Plating Material: Sn
Description
1. Application:
Copper Wire Electrolytic Tinning Machine is used to manufacture tinned copper wire.
The finished wire is widely used in the manufacture of cables.
It has good conductivity and high-frequency transmission performance and can provide stable and reliable signal transmission.
2. Main feature:
(1) Speed: 250m/min
(2) Coating Thickness: 1-20um
(3) Plating Material: Sn
3. Parameter:
| Machine Type | SY-2000A |
| Wire No | 1 |
| Line Speed | 250m/min (max) |
| Raw Material | Copper wire |
| Diameter Range(mm) | 1.8-2.2mm |
| Plating Thickness | 7-8um |
| Plating Material | Sn |
| Coating Thickness | 1-25um |
| Monthly production(According to 600 hours) | 103-149 tons |
| Electric Current | 1000-1350 A |
4. Advantages:

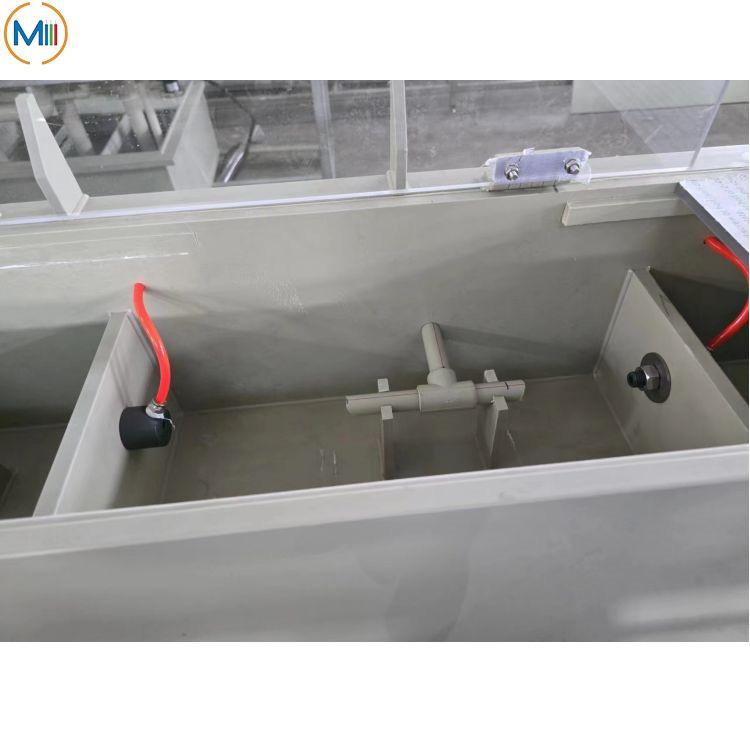

(1) The plating tanks are welded with special corrosion-resistant PP plates, and all plating tanks are installed on the machine rack.
(2) All bearing housings, shafts, and flanges are made of stainless steel.
(3) The drive adopts Siemens, and the PLC for electrical control adopts Siemens
(4) Instrument counters, troubleshooting, pump control, emergency, temperature control, line speed, plating, etc. are all displayed on the touch screen.
5. Delivery time: 90 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
