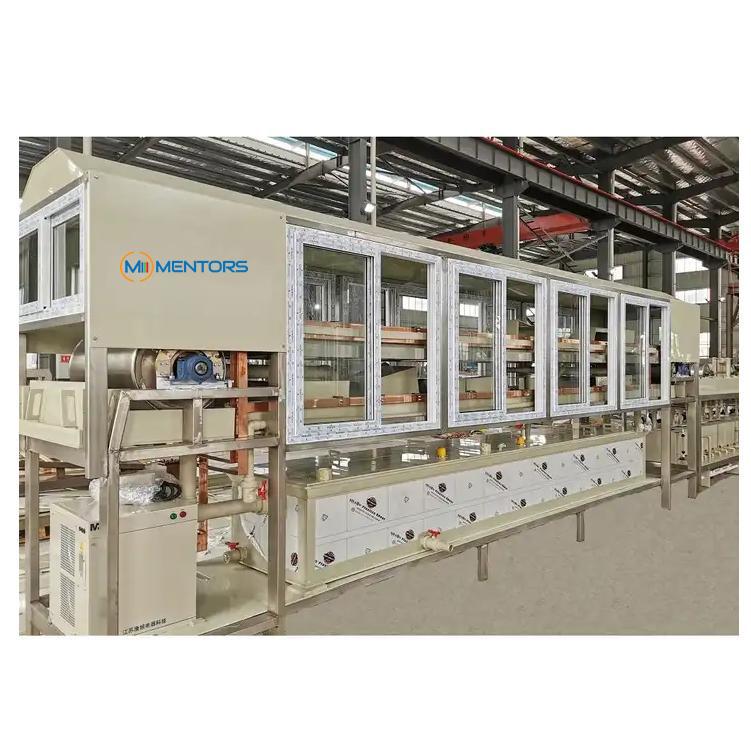

Copper Wire Electrolytic Silver Plating Machine
Feature:
(1) Copper Wire Range: 0.6-1.38mm
(2) Plating Speed: 60m/min
(3) Horizontal Plating roller Design
0086-13962242532
sunman@mentorsmachinery.com
Feature:
(1) Copper Wire Range: 0.6-1.38mm
(2) Plating Speed: 60m/min
(3) Horizontal Plating roller Design
1. Application:
By connecting the anode and cathode to a DC power supply, these three and the electroplating solution form a closed circuit, causing the silver ions in the electroplating solution to move directionally. Under the action of the current, the silver ions react chemically with the copper wire to obtain metallic silver and then evenly adsorbed on the surface of the copper wire.
This machine is used for silver plating of 0.6-1.38mm copper wire.
2. Feature:
(1) Copper Wire Range: 0.6-1.38mm
(2) Plating Speed: 60m/min
(3) Horizontal Plating roller Design
3. Parameter:
Copper Wire size | 0.6mm~1.38mm |
Silver Layer Thickness | 15-80g/kg |
Speed | 0-60m/min (Plating Speed), higher speed is available |
Machine Structure | Structure Body Welding by SUS304 rectangular Pipe;
Plating Bath Tank by PP Sheet Welding; |
Silver Plating Roller | Made by SUS316 with Polishing Surface; Diameter 450mm |
Anode Pole | Made by Titanium Mesh Net, T2 Grade |
Cathode Pole | Made by Copper Busbar with Carbon Brush |
Rectifier | 500A 6V H.F. Rectifier for Silver Plating;
|
Wire Pay-off | From Spool with Flyer Device; |
Motor for Driving | Plating Machine: 3.7KW AC,
Wire Spooler: 11KW AC Motor; Pay-off Motor: 5.5KW; |

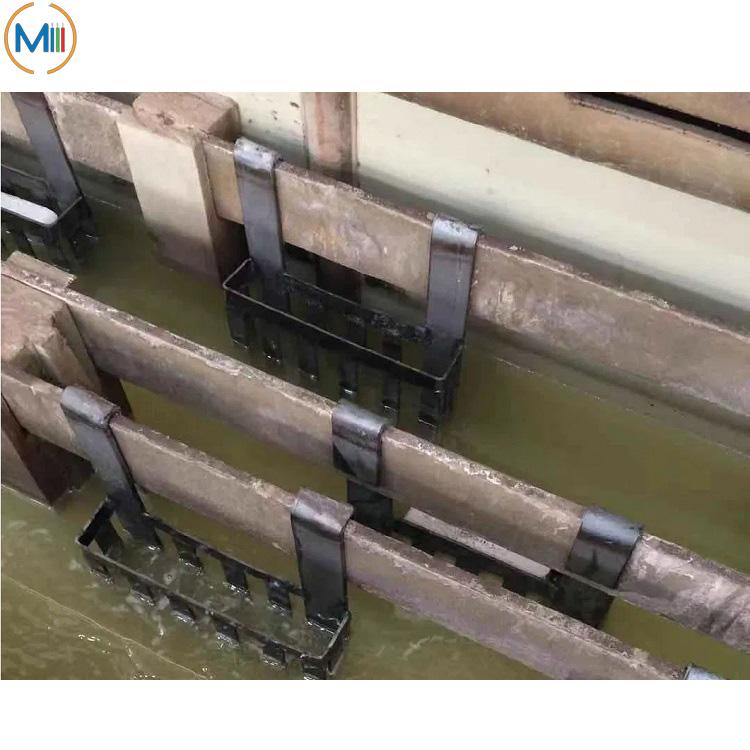

Process | Pay-off→Alkaline electrolysis→water washing→Acid Pickling →water washing→ pre-plating→collecting→water washing→pre-plating→main-plating→collecting→water washing→hot water washing→drying→take-up |
4. Advantage:

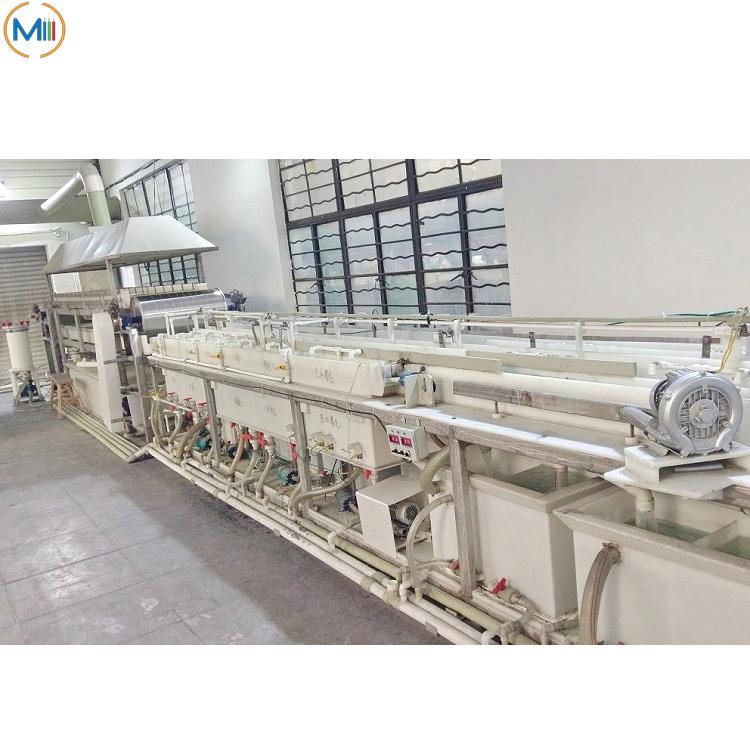

(1) The entire production line is composed of PP welding parts. The entire process includes sub-slots and mother slots, and the master slots are all provided with covers.

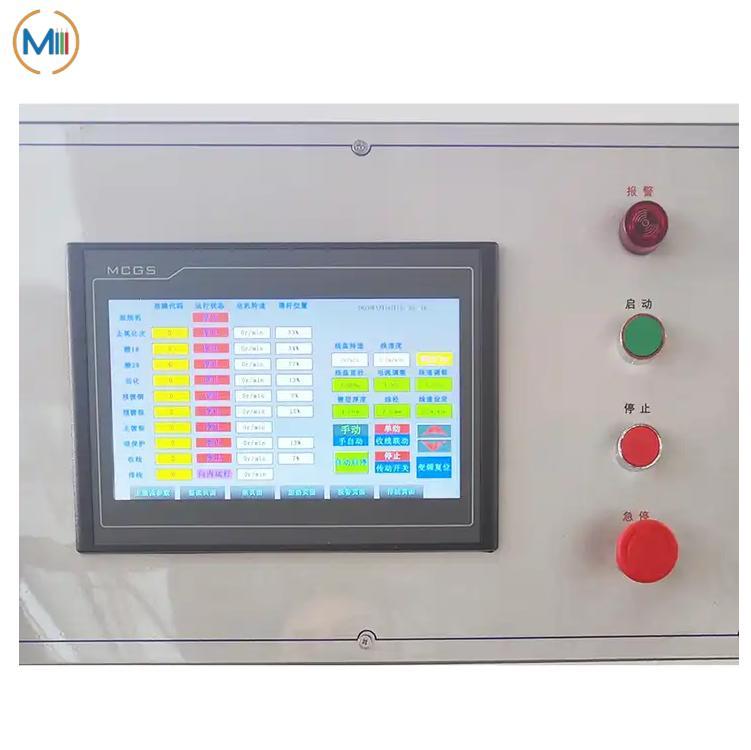

(2) The electrical control of the entire silver plating production line has been connected with cables. To prevent transport damage, the switch cabinet and control panel are reconnected when the production line is installed.
(3) The Pay-off and Take-up bobbin can be customized according to customer requirements and can automatically stop when the wire breaks.
5. Delivery time: 90 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
