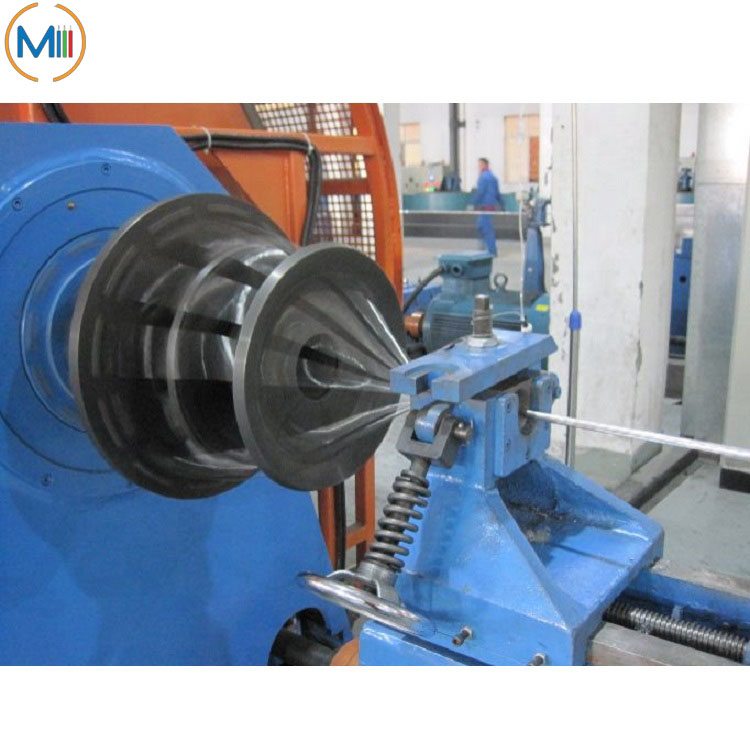

Copper or Al Wire Stranding Machine
The two wheels of the double wheel capstan are overhung position supported on shafts .
One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out.
Description
1. Application:
This machine is especially suitable for manufacturing power cable and cross-linked cable.
It’s driven by 36-stage gearbox.
2.Parameters:
| Model | SY-KJ630/61 |
| Single Copper Wire Dia.(mm) | Φ1.30-Φ4.50 |
| Single Aluminum Wire Dia.(mm) | Φ1.80-Φ5.0 |
| Max. Stranded Dia.(mm) | 15 |
| Pitch Range(mm) | 36-274 |
| Tube Rotate Speed(r/min) | Large Bearing Type 500 |
| Supporting Wheel 350 | |
| Traction Wheel Dia.(mm) | Φ1250 |
| Pay-off Bobbin inside of strander(mm) | 630 |

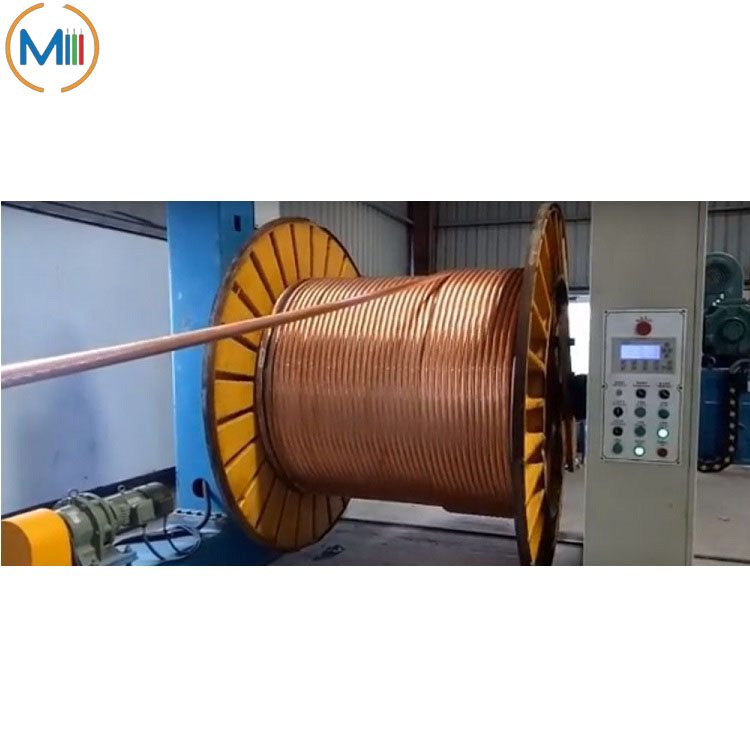

| Take-up Bobbin Size(mm) | PN1200-2000 |
3.Advantages:

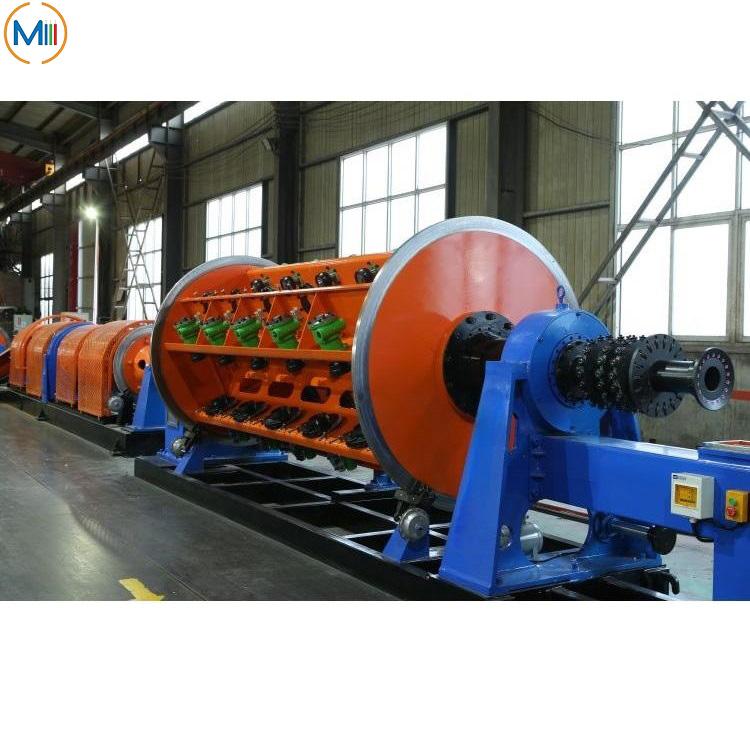

1.Reels are arranged quartering around the cages.The centralized side loading system can increase efficiency much more.
2.This stranding machine has high rigidity,high powered,high speed.
3.The maximum pulling force reaches 15T.
4.Each reel is equipped with an advanced broken wire detector,allowing to stop the machine automatically in case of broken wire.Insuring to repair the broken wire.
5.The four joints of the hinge are all one-piece quartered structures. The hinged cage is supported by the gearbox, the front part is supported by two sets of double-row self-aligning bearings respectively.
6.The pay-off tension of the Copper or Al Wire Stranding Machine is controlled pneumatically. Tension is obtained by a pneumatic friction device.
7.Pneumatic proportional valves, electrical monitoring devices, etc. are coordinated and controlled by PLC. The tension is uniform and constant.
4.Delivery time: 90-120 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
