1. Application:

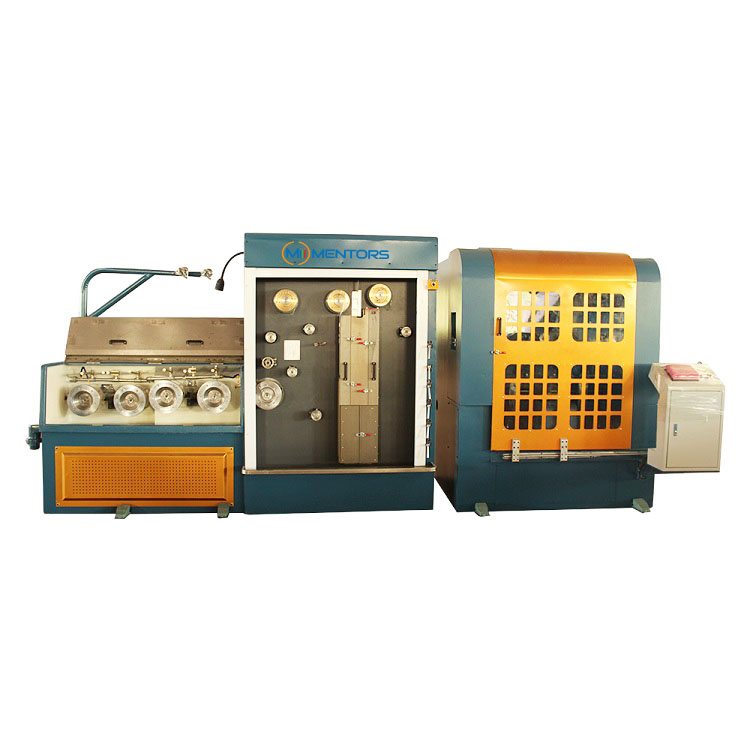

This machine is used for drawing and annealing copper wire from 1.2mm to 0.15-0.4mm.
2. Parameters:
| Machine Type | SY-DT22.2 | |
| Drawing Wire No. | 2 Wires | |
| Inlet Dia.(mm) | 1.2 | |
| Outlet Dia. (mm) | 0.15-0.40 | |
| Max. Die No. | 22 | |
| Max. Line Speed (m/min) | 1800 | |
| Main Motor Power (kw) | 22 | |
| Take-up Motor (kw) | 4 | |

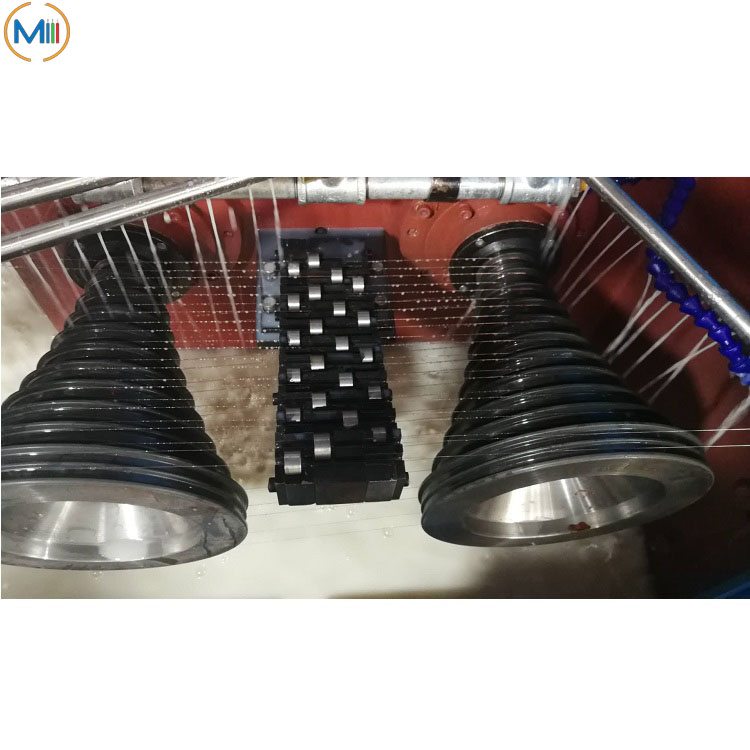

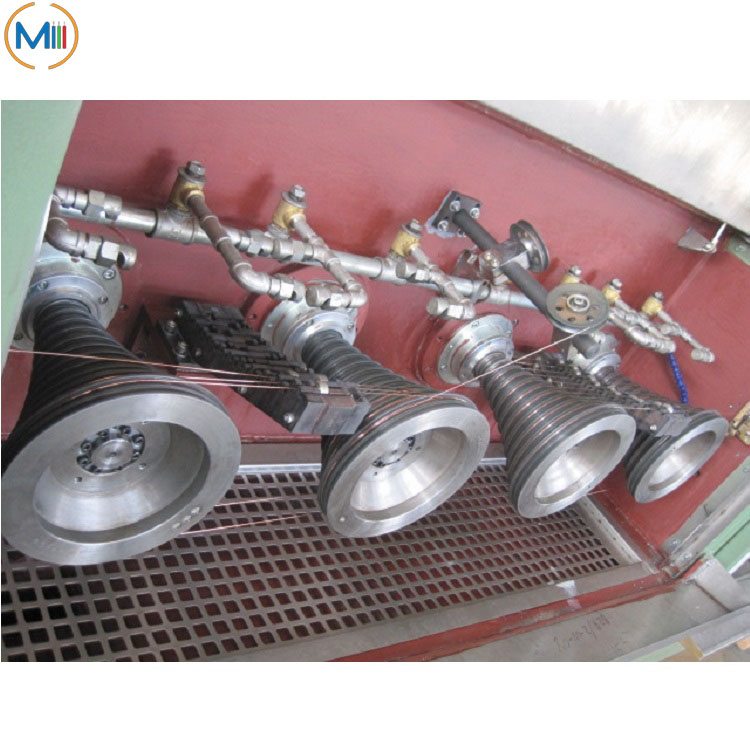

| Fix Speed Capstan Dia.)(mm) | 160 | |
| Take-up bobbin size(mm) | 300/400or changed by the requirement | |
| Online Continuous Annealing Device | ||
| Type | 160T-2 | 200T-2 |
| Annealing Wire No. | 2 Wires | |
| Annealing Wire Dia.(mm) | 0.15-0.35 | 0.30-0.7 |
| Annealing Voltage ( V ) | 0 ~ 60 | 0 ~ 60 |
| Annealing Current ( A ) | 0~350A | 0~600A |
3. Main description:

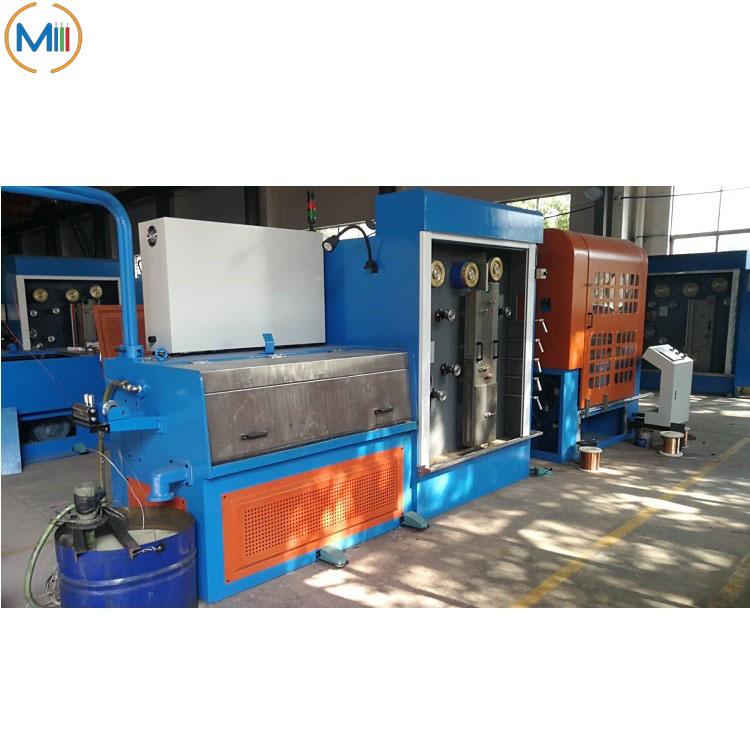

1). The main body of the Copper Multi Wire Drawing Machine with Annealing is made of Q235 steel structure being stress-relieved by annealing after welding.
2). Transmission shafts are made of chrome steel and heat-treated to HRC25-27. It has good mechanical properties and is capable of eliminating strong stresses, ensuring that the core axis is straight and coaxial.
3). It is equipped with PLC, frequency inverter, and HMI which indicate the status of working condition or trouble situation for the Copper Multi Wire Drawing Machine with Annealing. The contactors and relays are of the Schneider brand.
4. Advantages:
1). More stability, high production efficiency, low noise, and ease of operation.
2). Space saving around 50%
3). Electricity Saving around 10%; Labor Saving 50%
4). High efficiency for the next pay-off progress.
5. Delivery time: 45-60 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage.
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
