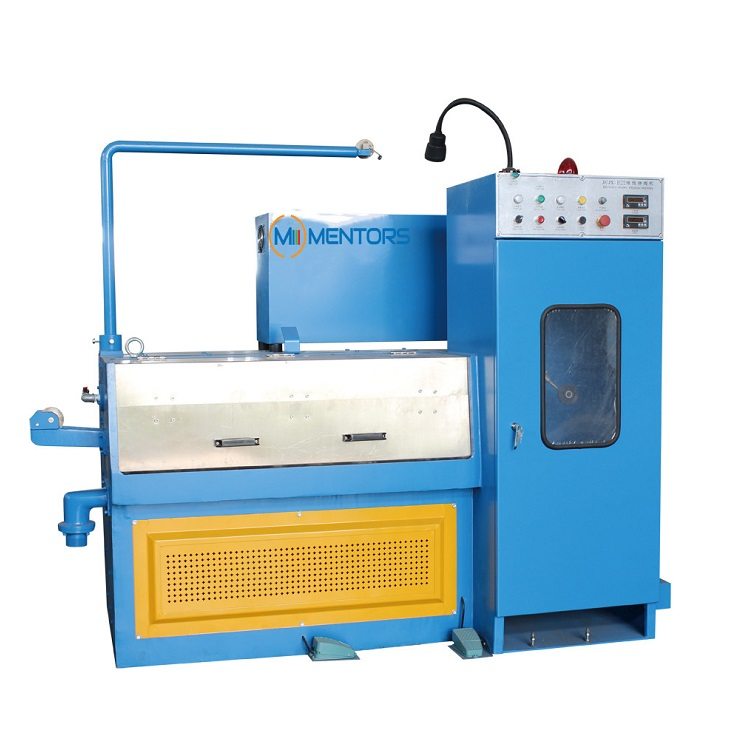

This fine wire drawing machine is special for drawing copper wires 0.15-0.40mm.
Finished wire is wound by the 300 steel bobbin.
Main feature:
1)Max.Dies Qty: 24
2)Inlet wire size: 0.5-1.2mm
3)Max speed: 2500m/min
4) Raw material: copper wire
5) Horizontal cones structure.
1. Application:
Copper Fine Wire Drawing Machine is used for drawing cooper wires to 0.08-0.32mm
2-Parameters:
| Machine type | SY-B24/A |
| Control system | Traditional analog type |
| Inverter control | Dual Inverter control |
| Drawing dies No./Max. | 24 |
| Inlet diameter | Ø 0.50- Ø 1.2mm |
| Outlet diameter | Ø 0.08- Ø 0.32mm |
| Drawing line speed | 2500m/min |
| Slip ratio of m/c | 13% |
| Fix speed capstan slip ratio | 8% |
| Frame | Ironed cast |
| Capstan | Ceramic plasma capstan |
| Main motor | 15KW |
| Spooler motor | 4KW |
| Spool bobbin size | Φ300mm
or according to customers requirements |
| Max .loading capacity | 50KG |
| Lubrication type | Spray type |
| Brake | Magnetic brake |
| Power source | 380V 50 HZ or others |
| Machine dimension | 2600×1600×1600mm |
| Machine weight | Approx.2000KG |
3.Advantages:
1).Compare to vertical copper wire drawing machine, more convenient for operating.
2).Smaller mechanical reduction ratio to reduce the wire break frequency.

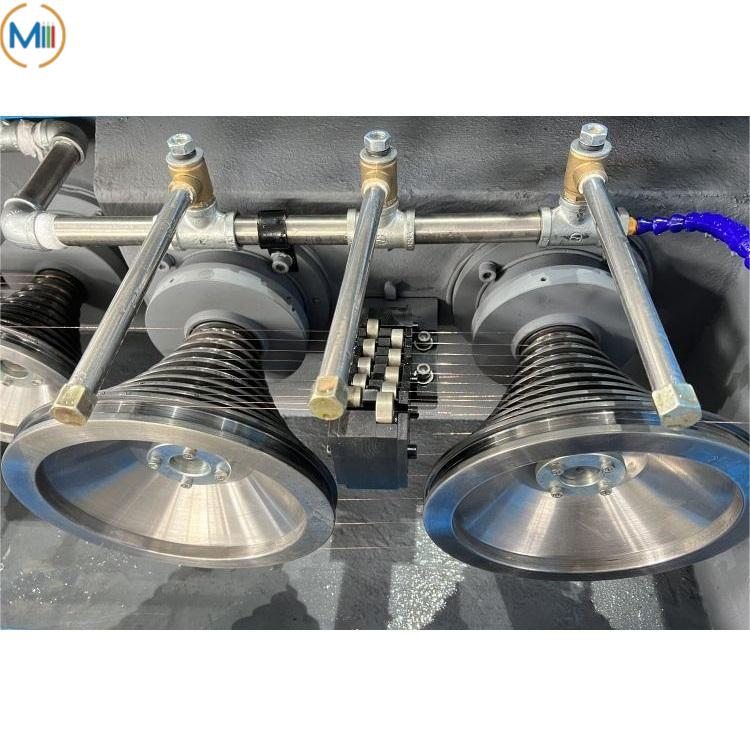

3).Ceramic coated capstan can keep long life.
4). Ironed cast body without shock heavily.

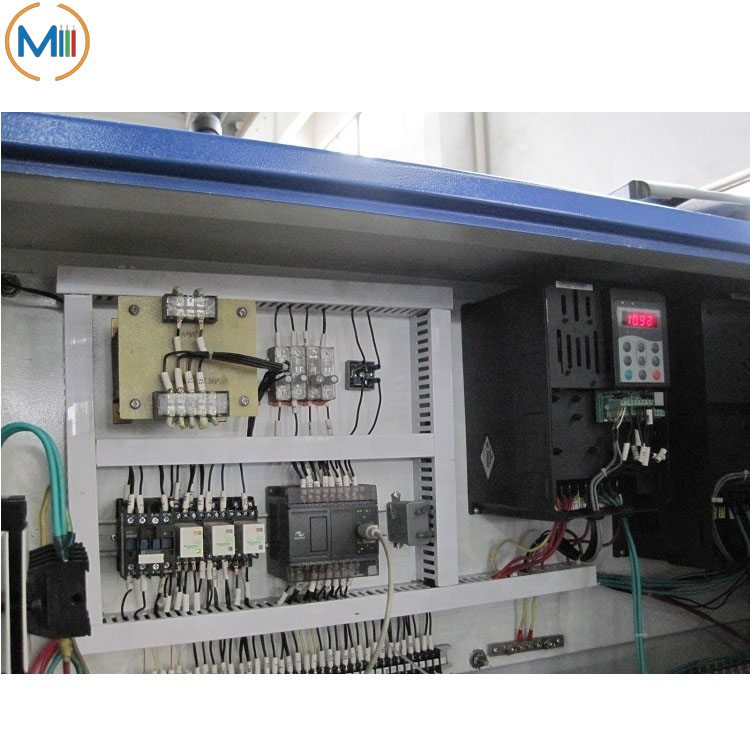

5).Adopt dual-inverter controlled and has a , bearing positioning is unilateral positioning, and use mechanical seal.

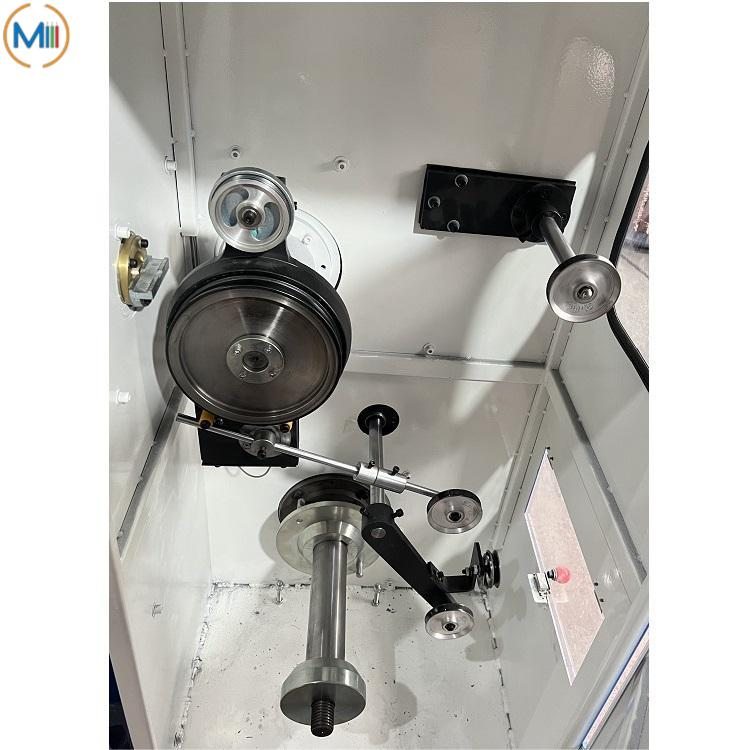

6).The main machine and take-up unit of Copper Fine Wire Drawing Machine are driven by individual motors, in order to make good linkage between the two motors.With the help of the role of the tension dancing arm, then transmit differential pressures from precision potential, through automatic calculation to achieve the effect of tension control.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
