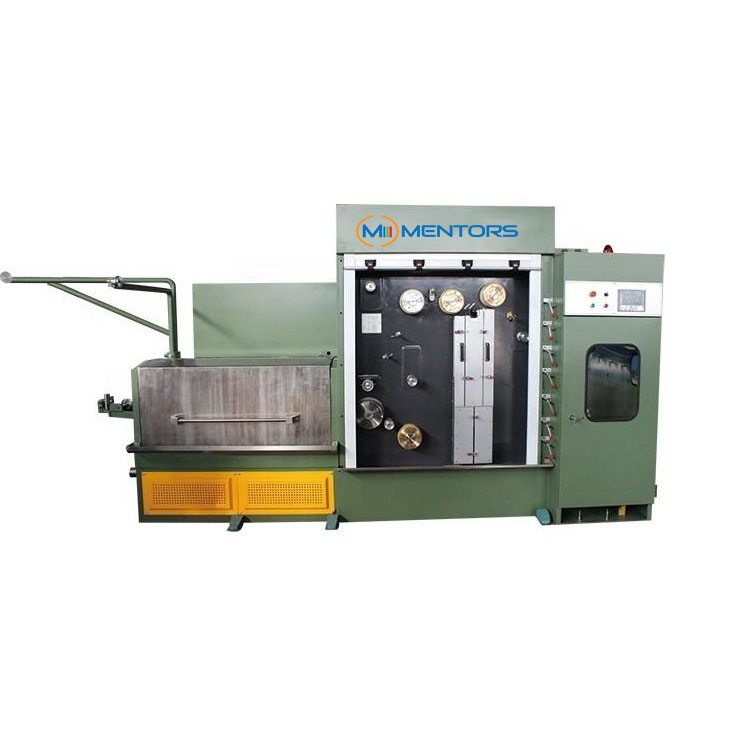

Copper Drawing Machine
It has dual inverter control and is energy saving and has a long service life.
Main feature:
1) Max.Dies Qty: 22
2) Outlet wire size: 0.15-0.4 mm
3) Max speed: 1800 m/min
4) Ceramic Plasma Capstan
Description
1. Application:
Copper Drawing Machine is used for drawing small copper wire from 0.6-1.2 mm to 0.15-0.4 mm.
Finished wire can automatically wind from full bobbin to empty bobbin without stop.
2.Parameters:
| Machine type | SY-DT22.1 |

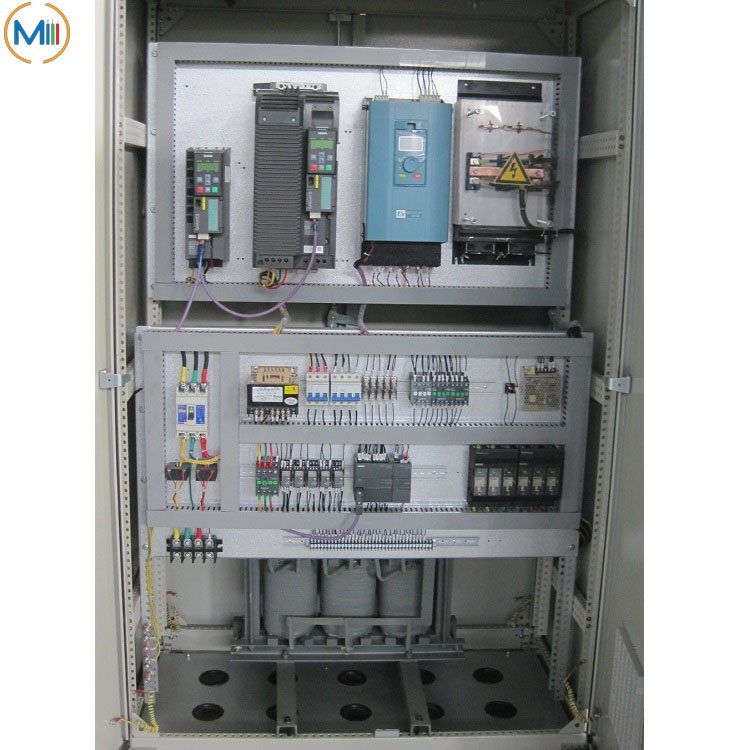

| Inverter control | Dual inverter control |
| Drawing dies No./max. | 22×2 |
| Inlet diameter | Ø 0.6- 1.2 mm |
| Out diameter | Ø 0.15- 0.40 mm |
| Drawing line speed | 1800mpm/max |
| Slip ratio of m/c | 15% |
| Fix speed capstan slip ratio | 8% |
| Frame | Welded by steel plate |
| Capstan | Ceramic plasma capstan |
| Main motor | 15 kw |
| Spooler motor | 2.2×2 kw |

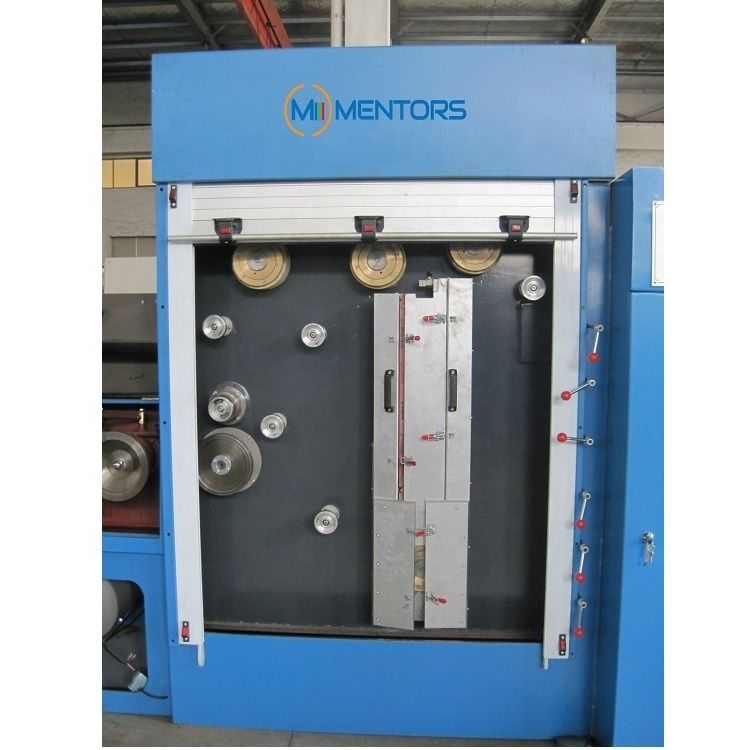

| Annealing voltage | DC 0-60 V |
| Annealing current | DC 300 A |
| Protection type | Steam or nitrogen |
| Spool bobbin size | Ø 300 mm OR customized |
| Transmission type | By timing belts |
| Spooler control | PID Synchronous spooler |
| Detecting device | Weight balance by swing arm |
| Tension control | Weight balance type |
| Lubrication type | Spray type |
| Brake | Magnetic brake |
| Power source | 380 v 50 HZ or customized |
3.Advantages:
1.Double drivers ensure precisely tension and minimum ratio of the wire.
2.Easy string-up and maintenance operations.
3.Two spool automatic change will save lots of time to change bobbin and keep very high efficiency.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
