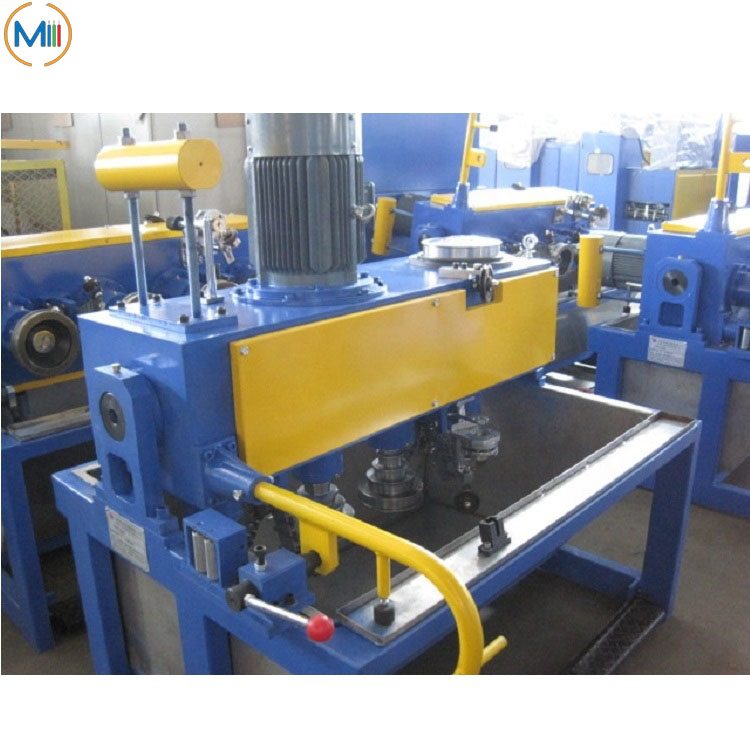

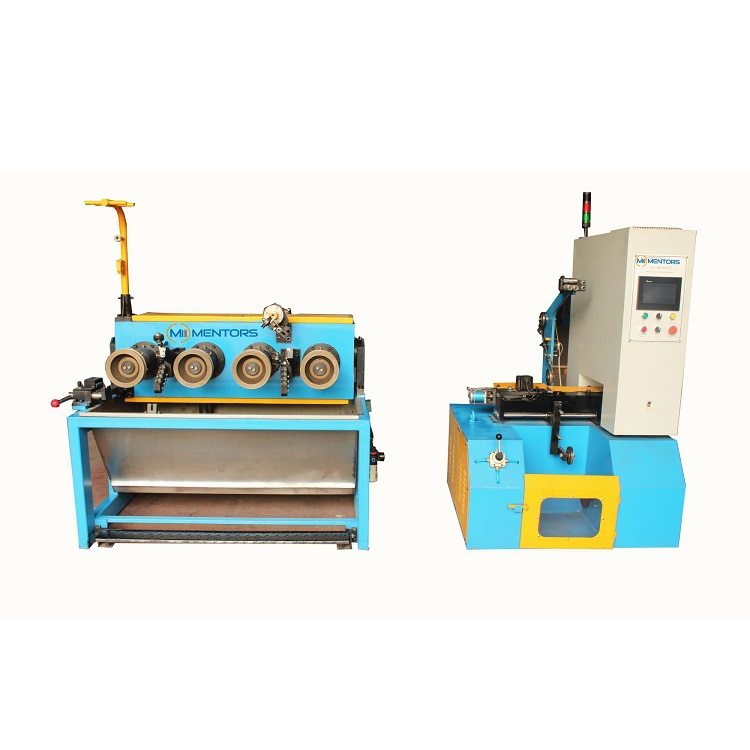

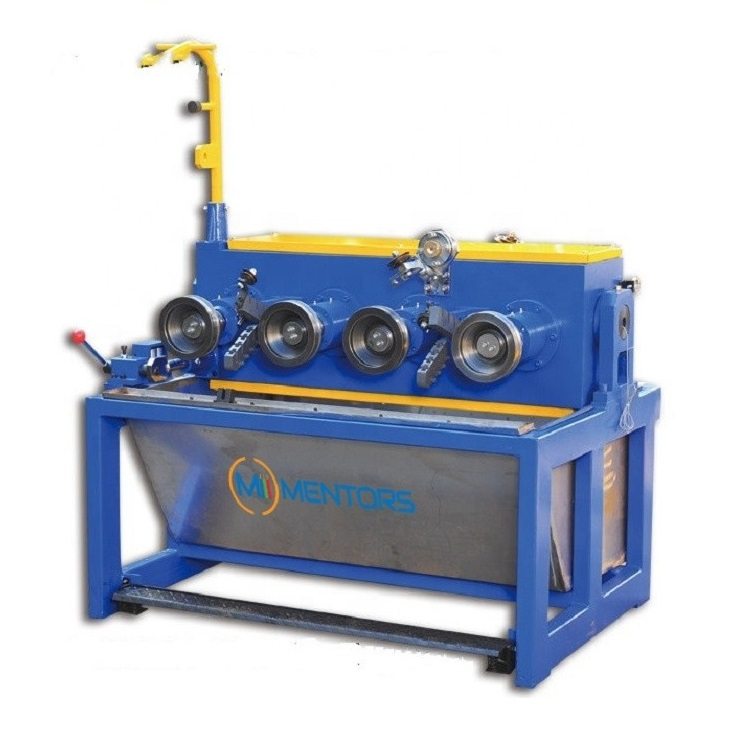

Copper Alloy Wire Drawing Machine
Smart operating system makes production easier.
Copper Alloy Wire Drawing Machine is small in size and low in noise.
Feature:
1).Max.Dies Qty: 17
2).Outlet wire size: 0.2-0.4 mm
3).Max speed: 24 m/min
Description
1. Application:
This machine is special used for drawing Nickel alloy or copper alloy.
Finished wire is wound by plastic bobbin.
2.Parameters:
| Machine type | FZ17/B |
| Control system | Dual inverter+PLC+HMI |
| Drawing dies No./Max. | 17 |
| Max. Inlet diameter | 1.00mm |
| Outlet diameter | 0.20–0.40mm |
| Max. Drawing line speed | 240m/min |
| Capstan raw material | Tool steel |
| Main motor | 4KW |
| Spooler motor | 1.1KW |
| Spool bobbin size | DIN160/200/250
or according to customers requirements |
| Traversing unit | Stepping motor |
| Transmission type | Teeth belt + Flat belt |
| Lubrication type | Full immersed |
| Power source | 380V 50/60HZ or others |
3.Advantages:
1.Special alignment device at final die position, keep wire vertical and quality, which is good for next process
2.Adopt electromagnetic brake with high quality, the machine will brake when wire was broken or the parameter of inverter escaped.
3.The meter counter is up to the setting data, Copper Alloy Wire Drawing Machine will reduce the speed in 30 seconds, it will brake automatically when it is nearly to stop, it can avoid wire broken and wire scribble.
4.Jogging device of Copper Alloy Wire Drawing Machine: Foot switch，while pointing the wire, people can use the Foot switch, make the machine operate with low speed( about 100m/min).
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
