The voltage automatically tracks the drawing speed, so it can ensure the wire performance at the same rate during speed up or speed down.
Feature:
1). Wire Quantity: 1 wire
2). MAX.Inlet Wire: 1.38 mm，Outlet Wire: 0.15-0.4 mm
3). Raw Material: Pure Copper or Brass Wire
1.Application:

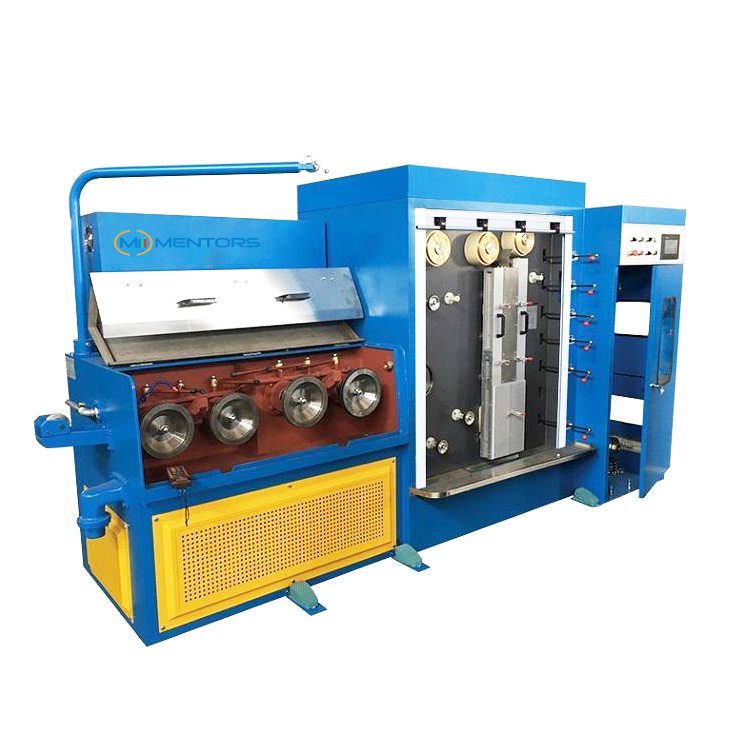

This machine is used for drawing and annealing brass wire or copper wire.
When used for brass wire, Annealing part will be with two sections and the annealing power is DC power .
2.Parameters:
| Machine Type | SY-DT22 | |
| Drawing Wire No. | One Wire | |
| Inlet Dia.(mm) | 1.38 | |
| Outlet Dia. (mm) | 0.15-0.40 | |
| Max. Die No. | 22 | |
| Max. Line Speed (m/min) | 1800 | |
| Main Motor Power (kw) | 15 | |
| Take-up Motor (kw) | 4 | |
| Fix Speed Capstan Dia.)(mm) | 160 | |
| Take-up bobbin size(mm) | 300/400or changed by requirement | |

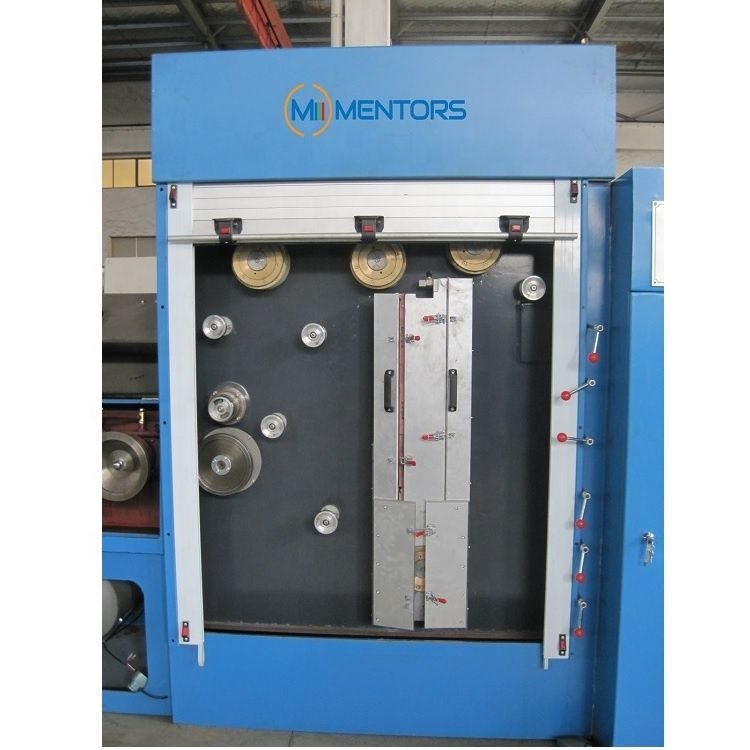

| On-line Continuous Annealing Device | ||
| Type | 160T | 200T |
| Annealing Wire No. | One Wires | |
| Annealing Wire Dia.(mm) | 0.15-0.35 | 0.30-0.80 |
| Annealing Voltage ( V ) | 0 ~ 60 | 0 ~ 60 |
| Annealing Current ( A ) | 0~250A | 0~600A |
3.Advantages:
1. Control method of Fine Wire Drawing Machine with Continuous Annealing.
The AC motors are controlled by the frequency inverters and the winding speed tracks the drawing speed by PID adjustment freely.

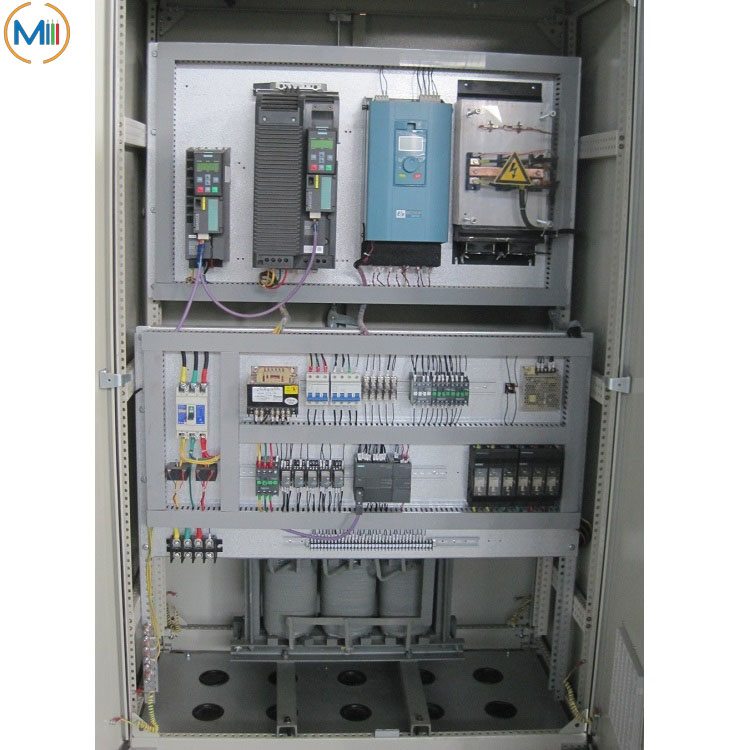

2.Main operation box on the top of the drawing machine connecting with the electric control box directly, it is equipped with a
touch screen, power control switch, power indicator light, start or stop and emergency stop.
3.Line speed setting,Real-time speed,Annealing voltage setting,Real-time voltage,Real-time current,Length setting,Real-time length,Cumulative length, Pump switch, Fault content display, Length reset, Fault reset and Traversing setting on touch screen.
4.How to maintain the machine:
1. Arrange staff to strengthen the cleaning and maintenance of Continuous Annealing Fine Wire Drawing Machine, focus on the surface condition of the main engine and abnormal problems of bearings, and find targeted measures to deal with them in time. Of course lubrication should be done well.
2. In addition to the above requirements, we also need to reasonably arrange the working hours of the wire drawing machine equipment. Continuous work for a long time is prone to failure and accelerated aging. In severe cases, it may even cause certain dangers. So we let the equipment stand for a period of time, and take certain cooling measures after using it for a period of time.
5.Delivery time: 45-60 working days
6.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7.Guarantee: 12 months since shipping date(exclude easily wearing part)
