This machine is special for CCA wire 0.65-1.6mm from 3mm.

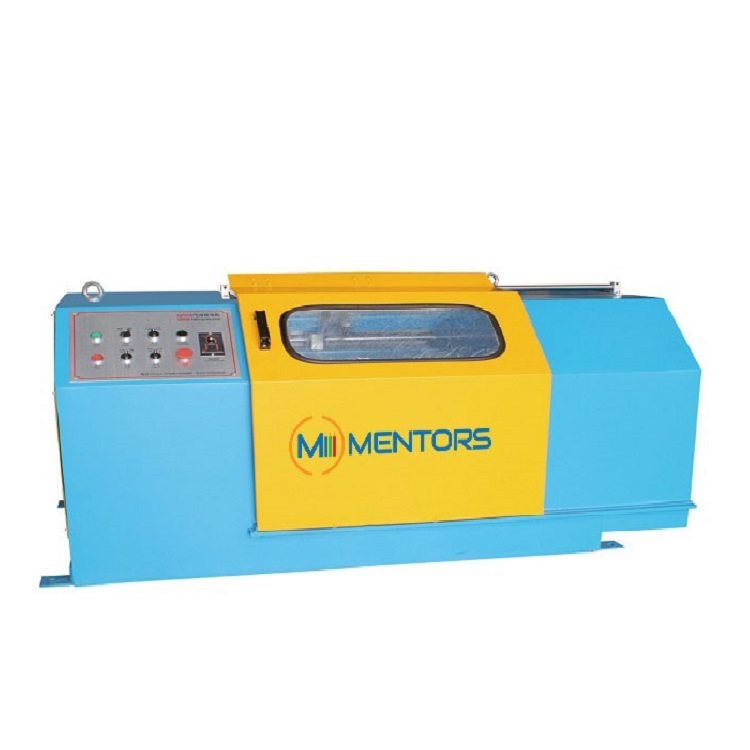

Finished wire is wound by the 630 single take-up machine.
Main feature:
1).Max.Dies Qty: 17
2).Outlet wire size: 0.65-1.6mm
3).Max speed: 1500m/min
4).Raw material: CCA wire(copper coating aluminum, or copper cladding aluminum)
1. Application:

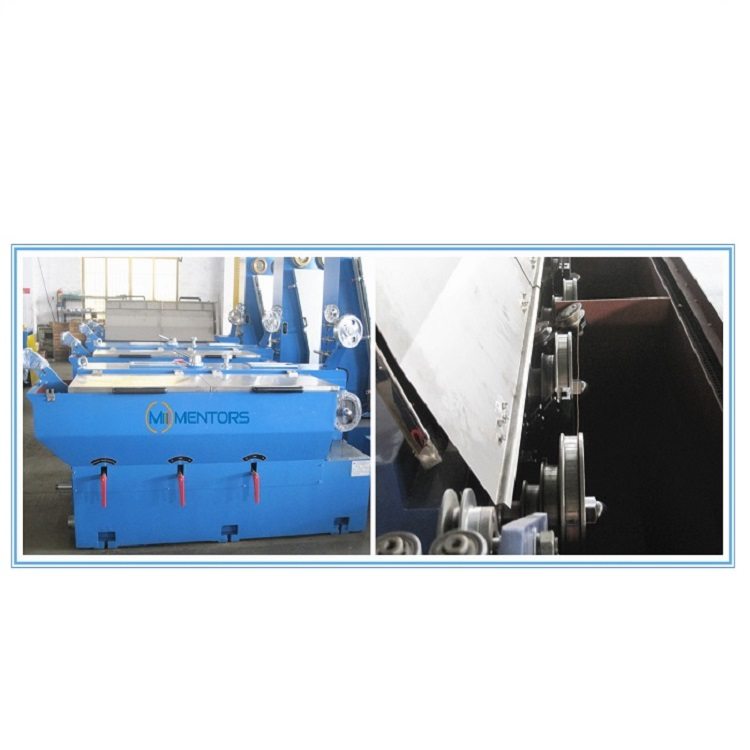

CCA Intermediate Wire Drawing Machine is used for drawing CCA wire(copper coating aluminum or aluminum alloy wire, copper cladding aluminum).
2.Parameters:
| Machine type | SY-17DLH |
| Max.Inlet Dia.(mm) | Ф3.5 |
| Outlet Dia.( mm ) | Ф0.65~Ф1.6 |
| Max.Die No. | 17 |
| Max.line speed(M/Min） | 1500 |
| Body structure | Ironed cast |
| Slip ratio of machine | 15% |
| Fix speed capstan Dia.(mm) | 250 |
| Transmission type | By gear |
| Main motor power (KW) | 45 |
| Take-up motor power (KW) | 7.5 |
| Lubrication type | Full immersion |
| Take-up bobbin size (mm) | Φ500/Φ630 (Bore is Φ127mm) or changed by requirement |
| The bobbin fixed type | Clamping and relax by air |
3.Advantages:
1). Special seal system between the gear box and drawing section to prevent oil leakage and mixed.

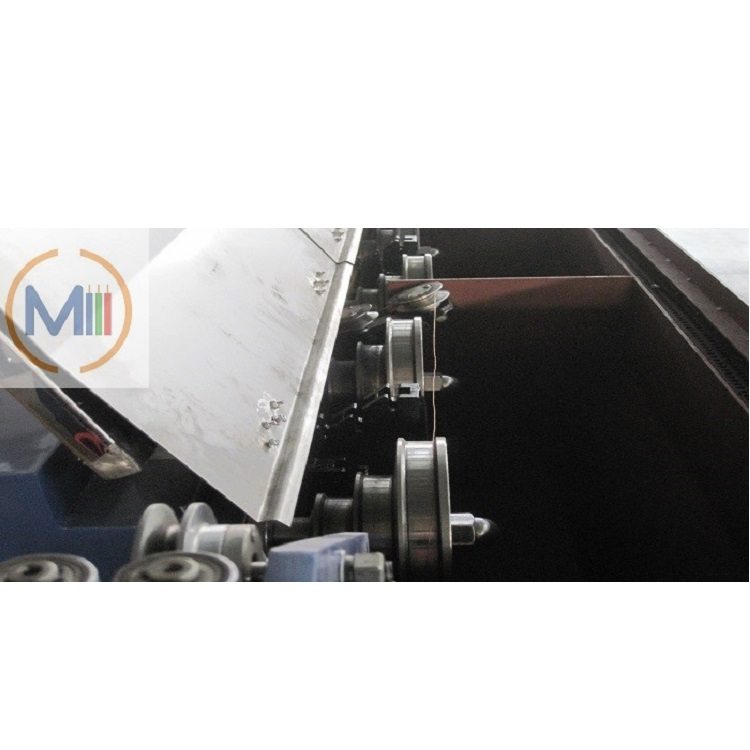

2). Ironed cast and Wear-resistant capstan can keep long life.
3). Smaller mechanical reduction ratio to reduce the wire break frequency.
4). Besides CCA wire, also can be used for al-alloy wire.
4.Delivery time: 45-60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
