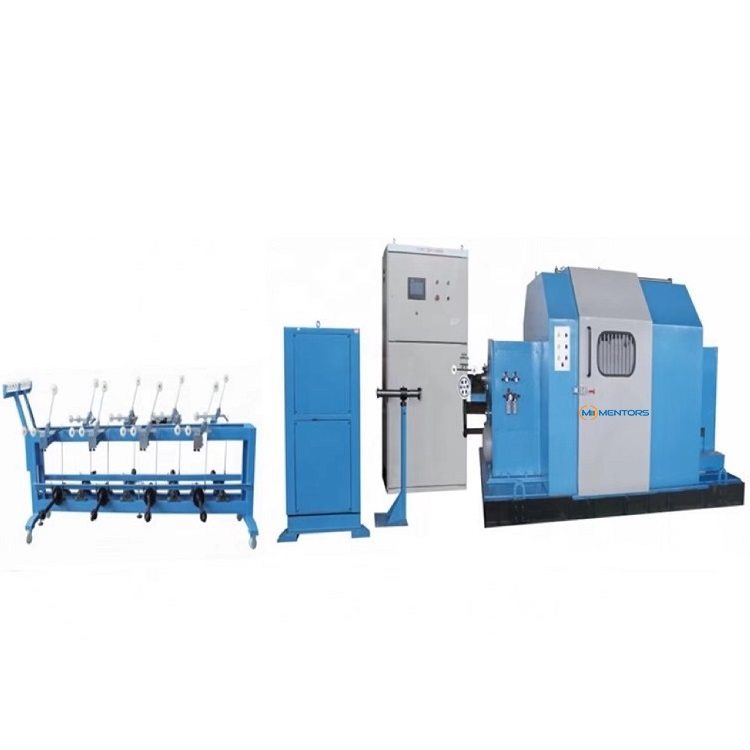

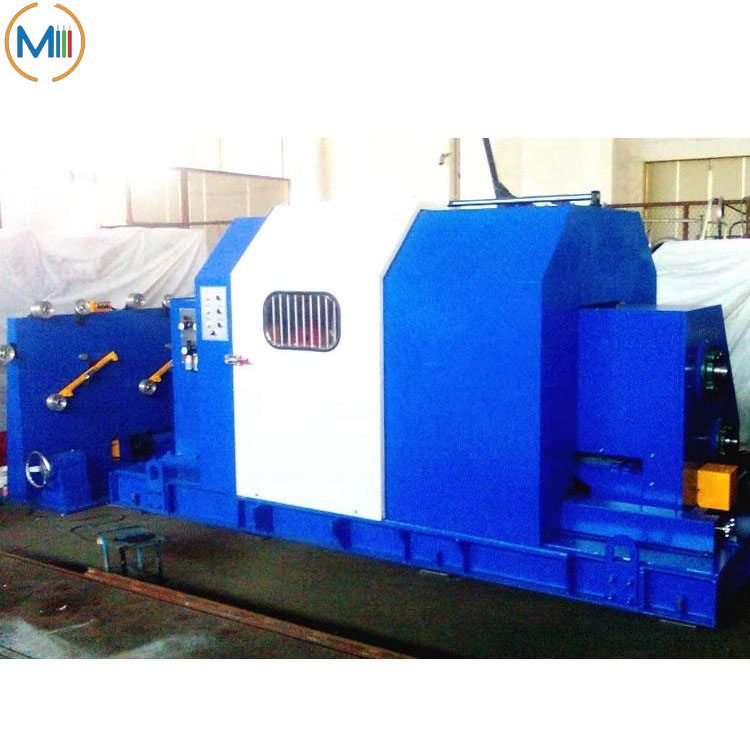

Cable Twisting Machine
The inverters, bearings and other parts of Cable Twisting Machine use world famous brands,so that it can ensure quality and greatly improve service life.
0086-13962242532
sunman@mentorsmachinery.com
The inverters, bearings and other parts of Cable Twisting Machine use world famous brands,so that it can ensure quality and greatly improve service life.
1. Application:
Cable Twisting Machine is used for twisting bare copper, tinned wire and enameled wire which can be mainly applied in the wire and cable industry.
2.Parameters:
Machine type | SY-1000 |
Copper wire Dia. | 1.00-5.00mm |
Max. rotate speed | 600rpm |
Twisting pitch range | 30-350mm |
Traversing type | stepless regulation |
Bobbin Dia. | 1000mm |
Brake system | magnetic brake |
Motor power | 15kw |
Traversing distance | 3-30 |
Twisting direction | S or Z |
Wrapping type | center wire-wrapping or side wrapping |
3.Advantages:
1. More stability, high production efficiency, low noise and easy to operation.
2. It can twist both cable and copper wire.
3. Twisting and wrapping at the same time.
4.Usage matters:
During the use of the Cable Twisting Machine, due to improper operation or other natural factors, the machine is twisted in the wrong direction, the stranding pitch is unqualified, and the wires are chaotically pressed.
1.For the wrong stranding direction, the stranding pitch is unqualified (mainly too large), mainly due to wrong judgment.
2.If the cable is chaotic and pressed, it is basically caused by the following situations: Stranded products are generally supplied in coils. Large cross-sections should be arranged one by one, especially the bottom line should be arranged neatly. When the cable is turned around, because there is a stop, special attention should be paid, there should not be too much gap between the upper and lower layers, and the row spacing should be appropriate.

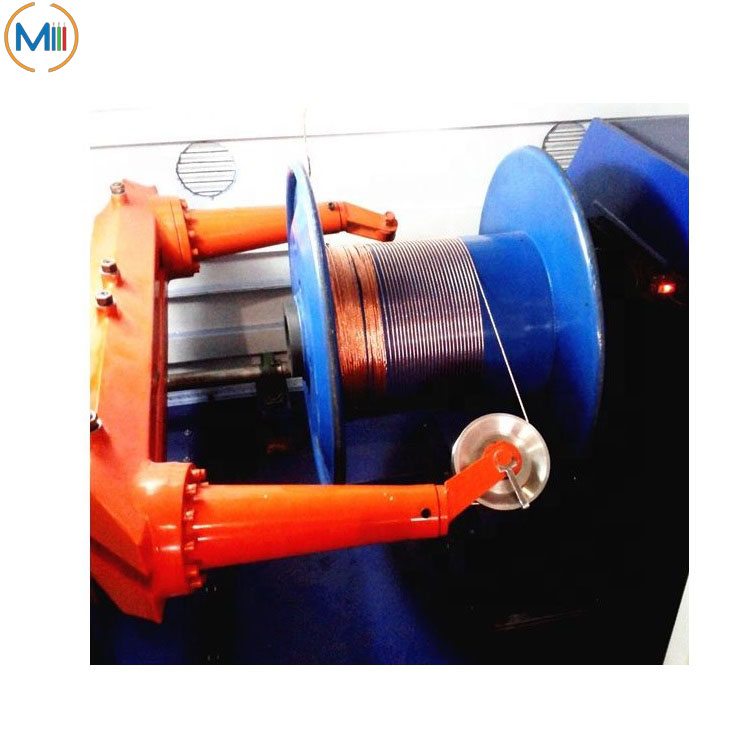

3.Encountered the above problems, First of all, the tension of the take-up must be adjusted. When manually arranging the wire, the pitch of the wire should be changed according to the diameter of the wire core. The key to arranging the first layer is to arrange it neatly.
Secondly, when adjusting the layer, manually arrange the wire to ensure the arrangement quality. Finally, the operator needs to observe the wire at any time, and adjust it in time if there is a problem, pay attention to fixing the two wire ends and leave the edge distance.
5.Delivery time: 45 working days
6.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7.Guarantee: 12 months since shipping date(exclude easily wearing part)
