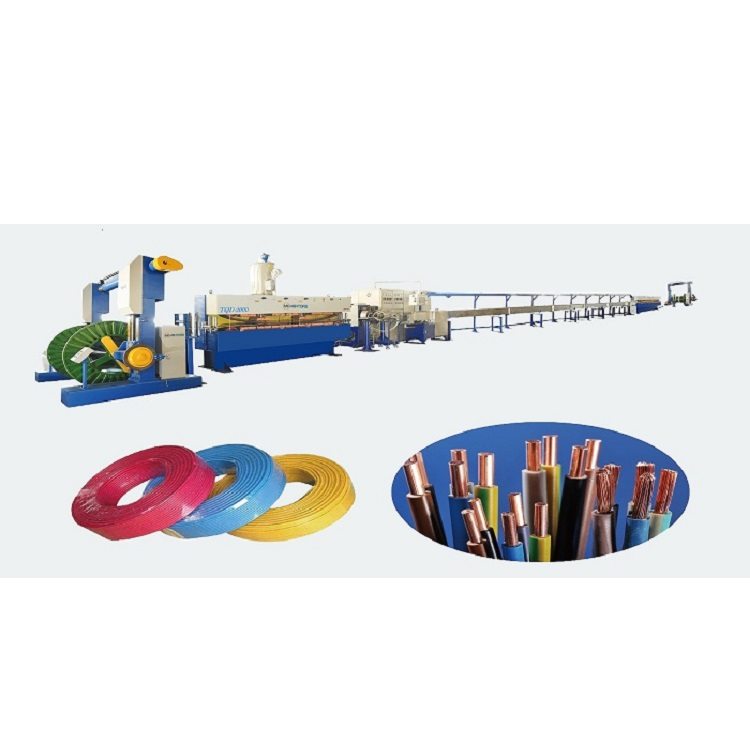

Cable Making Extruder
Cable Extruder is used for the insulation of wire and cable with PVC,PE, XLPE, LDPE etc.
Description
1.Application:
This type machine is used for making power cable.
2.Parameters:
| Type | Screw Parameters | Power | Haul-off Unit | ||||||
| Dia.
(mm) |
L/D Ratio | Rotate
Speed (r/min) |
Extrusion
Capacity kg/h |
Main
Motor Power (kw) |
Finished
Wire Dia.(mm) |

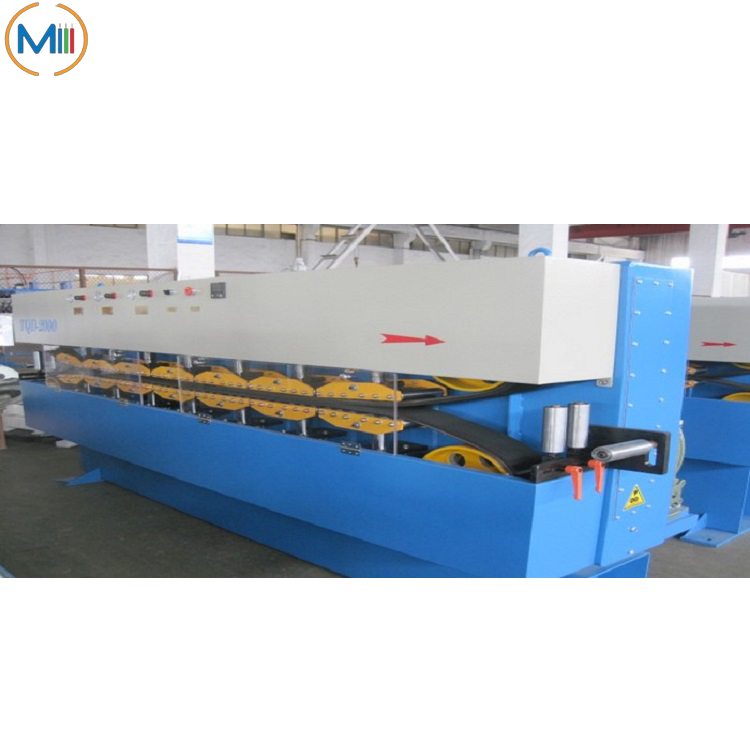

Front
Caterpillar haul-off |
back
caterpillar haul-off |
Line
Speed (m/min) |
|
| SY-90 Extrusion | Φ90 | 25:1 | 90 | 280 | 90 | 4-45 | 500 | 1250 | 10-150 |
3.Advantages:
1)The concentricity of wire is more than 90%, with high precision ±0.03.
2)Barrel and screw is made of 38 CRMOAIA alloy steel, which has high rigidity, good anti-corrosive performance and is rather durable.
3)Tandem insulation can produce two layers cable easily.
4)Electrical control :PLC with touch screen.
4.Delivery time: 45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
