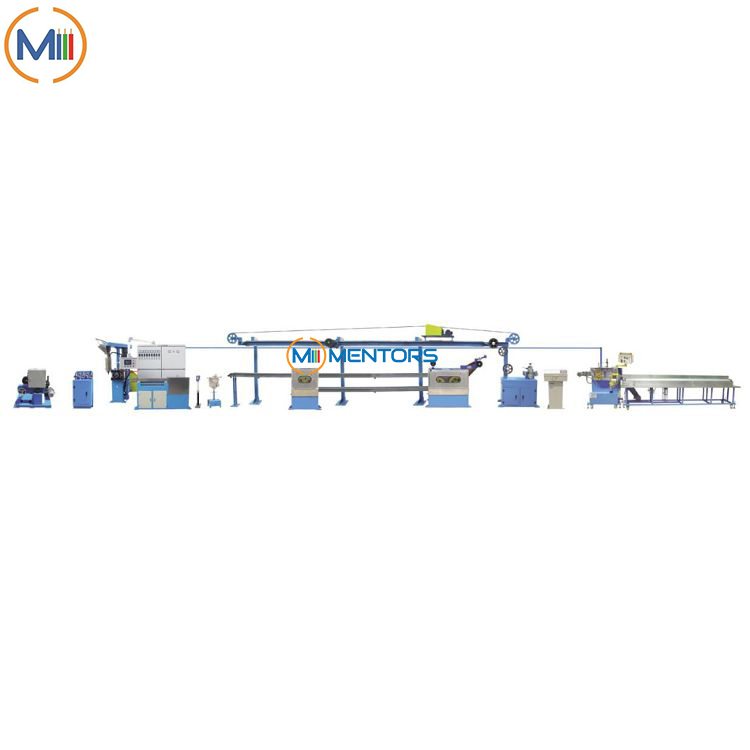

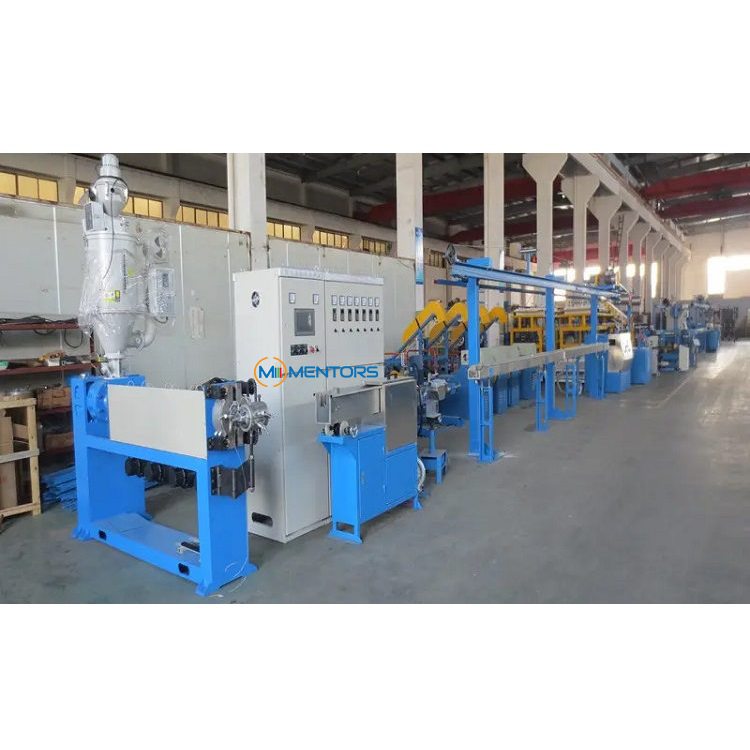

Cable Extrusion Machine
This machine is ideal for the extrusion of plastic-insulated PV cables.
Description
1. Application:
This cable extruder machine is ideal for the extrusion of plastic-insulated PV cables which are intended for use in photovoltaic power supply systems and similar applications as a free hanging, movable, fixed installation, and buried in the ground in constructional covered systems. These plastics include PE, XLPE, etc.
2. Parameters:
| Model | SY-80 |
| Pay-off type | Double shaft |
| Pay-off bobbin size(mm) | PN400-630 |
| Screw diameter(mm) | 80 |
| Screw L/D ratio | 26:1 |
| Extrusion capacity(kg/h) | 230 |
| Main machine motor power | 40HP |
| Wire diameter(mm) | 2.0-20.0 |
| Temperature control | 6 sections |
| Cooling system | Single/double layer U type |
| Traction power | 7.5HP |
| Store cable type | horizontal |
| Store cable length(mm) | 200 |
| Line speed(m/min) | MAX450 |
| Take-up type | Shaft /Binding |
| Take-up bobbin size | PN500-630 |
| Take-up power | 5HP |
3. Advantages:

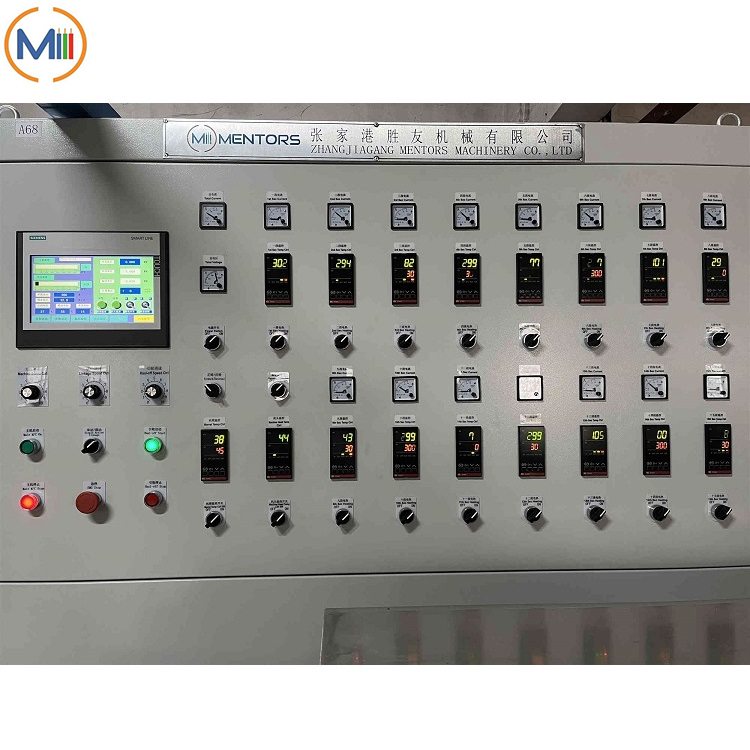

1. Electrical control: Imported converter+PLC touch screen control.
2. Users can choose an active pay-off rack, copper wire preheater, powder passing machine, laser diameter measuring instrument, etc. according to their needs.
3. The crosshead is specially designed to cater to the processing of the most demanding and versatile material with ease.
