Two copper wires are drawn and annealed at the same time to ensure the uniformity of wire quality, which can effectively improve production efficiency and reduce production costs.

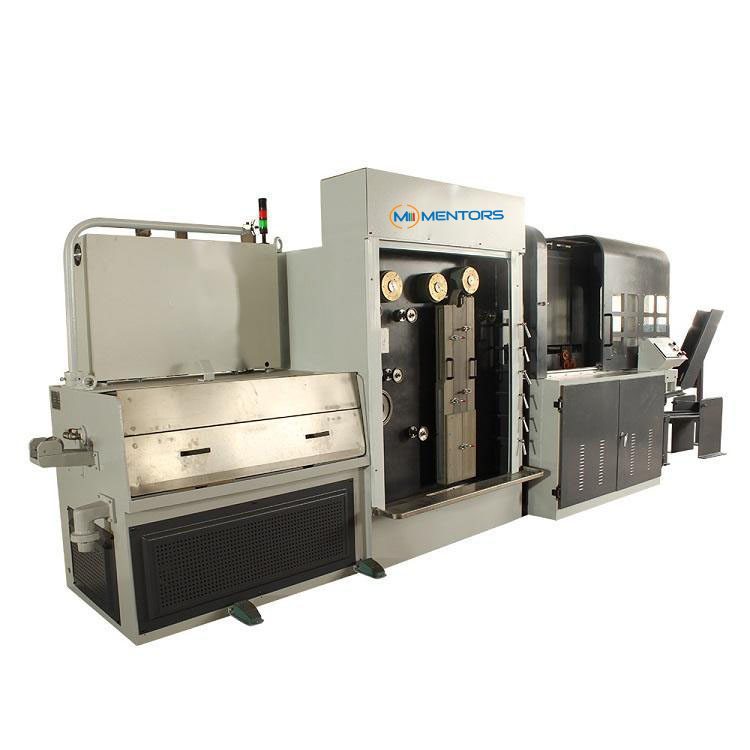

The Automatic Wire Drawing Machine is composed of pay-off, 2 heads wire drawing machine, 2 heads continuous annealing device and single spool take-up device.
Main feature:
1) Max.Dies Qty: 22
2) Outlet wire size: 0.15-0.4 mm
3) Max speed: 1800 m/min
4) Ceramic plasma capstan
1. Application:
Automatic Wire Drawing Machine is used for drawing wire from 0.6-1.2 mm to 0.15-0.4 mm
2.Parameters:
| Machine type | SY-DT22/1.2 |

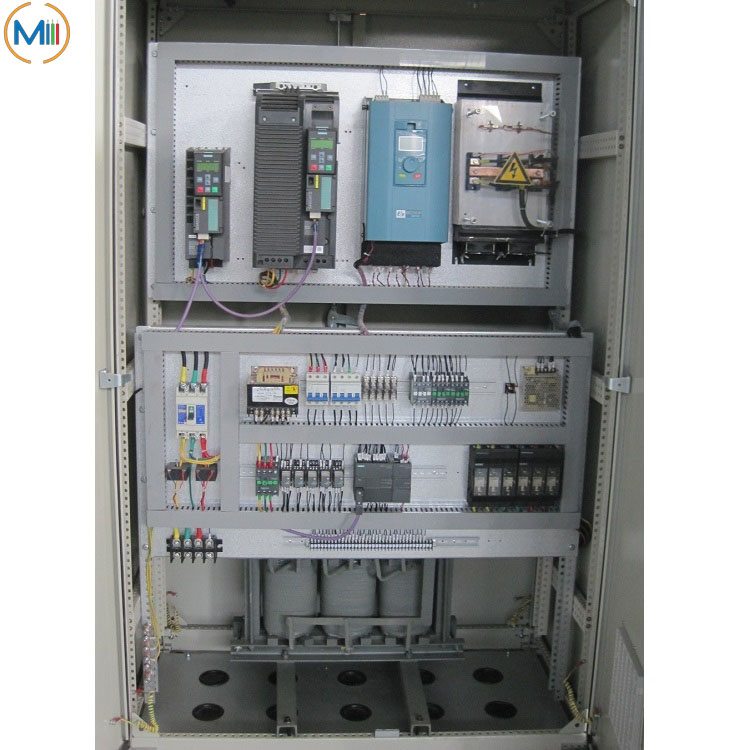

| Inverter control | Dual inverter control |
| Drawing dies No./max. | 22×2 |
| Inlet diameter | Ø 0.6- 1.2 mm |
| Out diameter | Ø 0.15- 0.40 mm |
| Drawing line speed | 1800 m/min |
| Slip ratio of m/c | 15% |
| Fix speed capstan slip ratio | 8% |
| Frame | Welded by steel plate |
| Capstan | Ceramic plasma capstan |
| Main motor | 15 kw |
| Spooler motor | 2.2×2 kw |
| Annealing voltage | DC 0-60 V |
| Annealing current | DC 300 A |
| Protection type | Steam or nitrogen |
| Transmission type | By timing belts |
| Spooler control | PID Synchronous |
| Detecting device | Weight balance by swing arm |
| Tension control | Weight balance type |
3.Advantages:
1. Machine is driven by a belt,low noise.
2. Drawing capstan has two types raw material, they are ceramic plasma and Zirconium oxide. Customer can choose according to request.

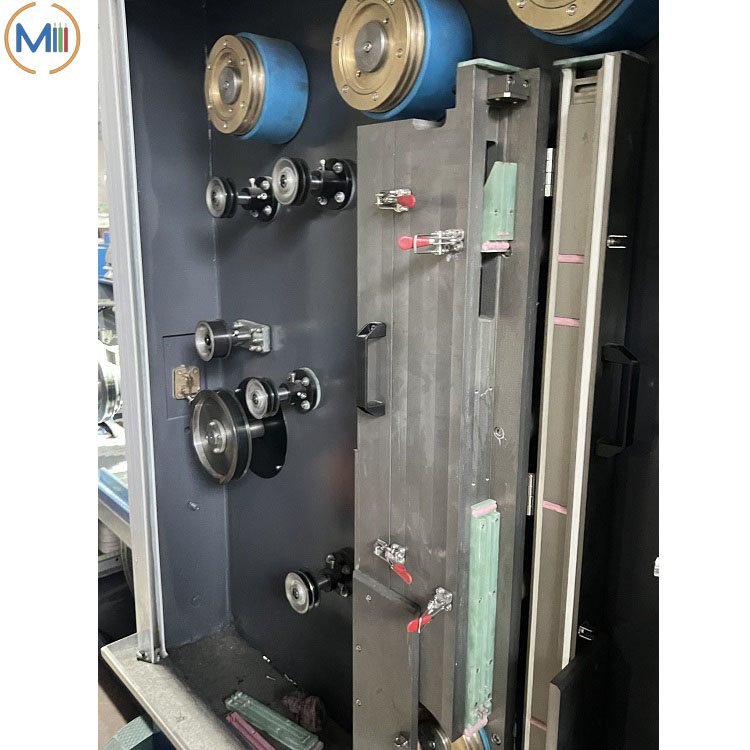

3. D.C current annealing designing has 3 sections,with full digital controlled.

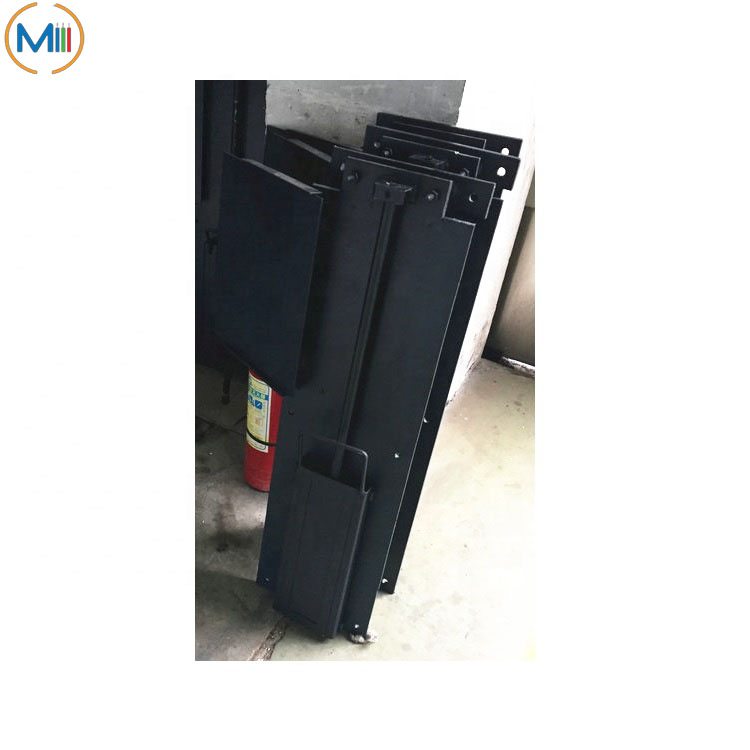

4. Automatic Wire Drawing Machine when run with single wire, can choose with dual spool take-up, which can keep running without stop when bobbin is full. Also loading and unloading bobbins automatically.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
