Take-up speed swing arm buffer detection, automatic correction and speed control.
And the tension can be adjusted according to the aluminum wire diameter.In this way, the speed for drawing and take-up part can keep same.
Main feature:
1. Wire quantity: 1 wire
2. Max.Inlet wire: 1.2 mm, outlet wire: 0.10-0.40 mm
3. Raw material: CCA wire, Aluminum Alloy wire, CCS wire, Copper wire

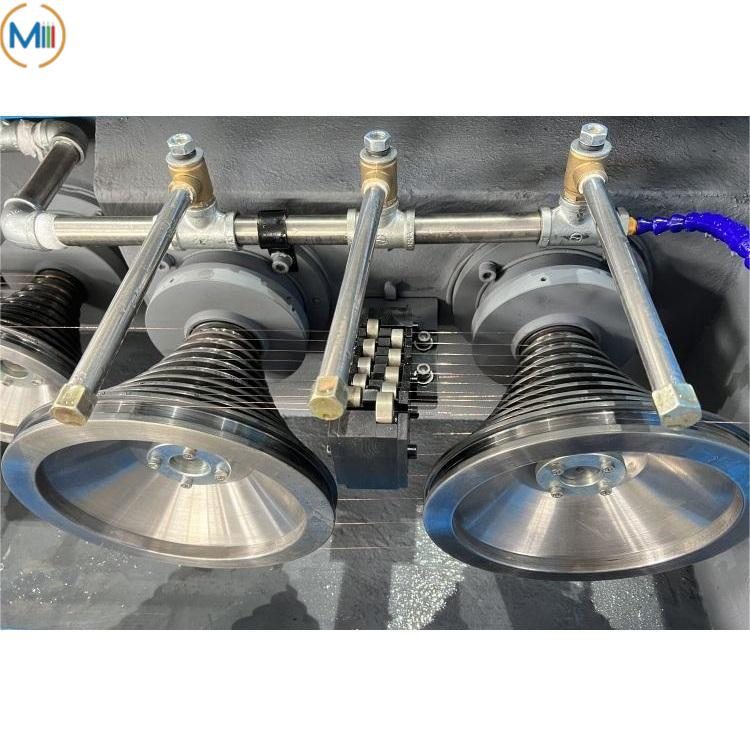

4. Capstan quantity: 4 PCS in vertical
1. Application:

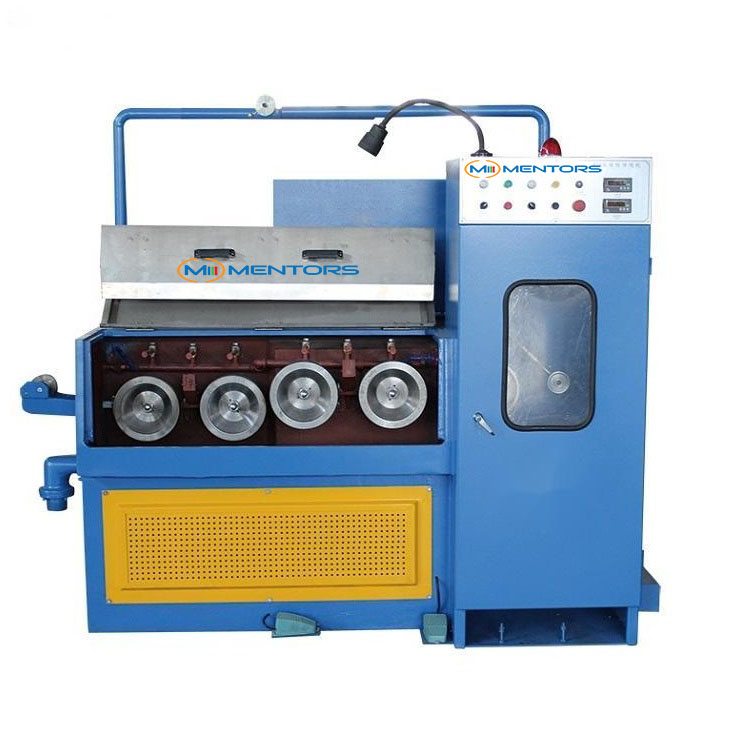

Aluminum Wire Fine Wire Drawing Machine is special used for drawing wire 0.1-0.4 mm. If use bigger motor, also can be used for copper wire.
Finished wire is wound by 300 steel bobbin.
2.Parameters:
| Machine type | SY-24D |

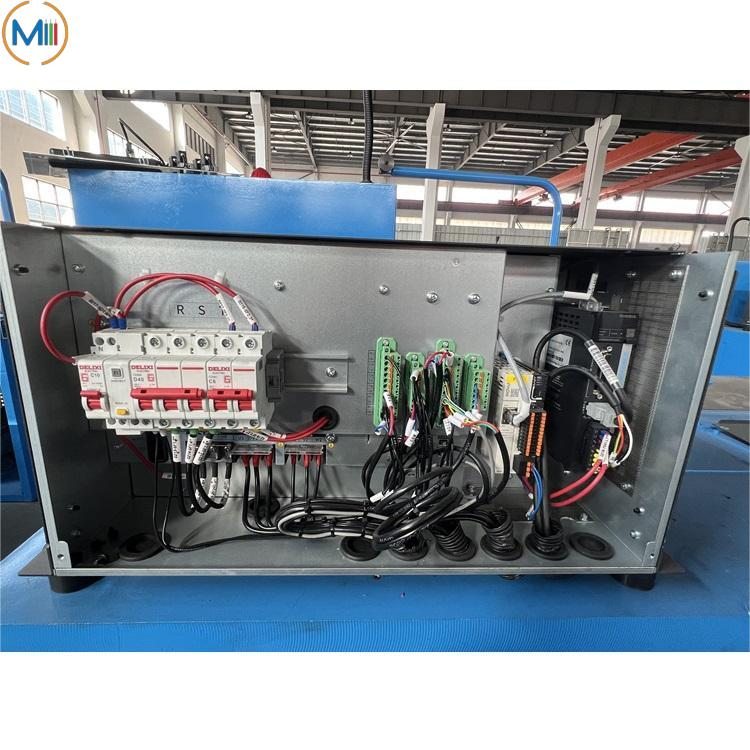

| Inverter control | Double inverter control |
| Body structure | four cones in vertical |
| Max. Inlet Dia. (mm) | 1.2 |
| Outlet Dia. (mm) | 0.1~0.4 |
| Max. Die No. | 24 |
| Max. Line speed (m/min) | 2000 |
| Slip ratio of m/c ( % ) | 13 |
| Fix speed capstan Dia.(mm) | 160 |
| Transmission type | Belt |
| Take-up bobbin size (mm) | 300-400 |
| Traversing type | Synchronous motor +belt |
| Tension control | Weight balance type |
3.Advantages:
1. Double drivers ensure precisely tension and minimum ratio of the wire.
2. Easy string-up and maintenance operations.
3. Energy saving and excellent wire surface quality.
4. Best choice for diversify products manufacturer.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
