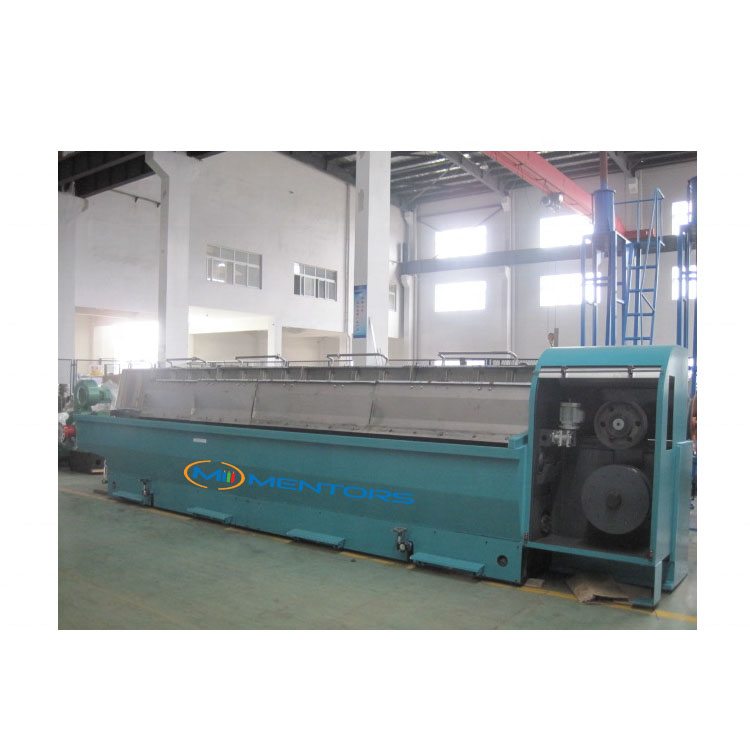

Aluminum Rod Drawing Machine
Aluminum Rod Drawing Machine is mainly used for drawing Al rod to Φ3.0～Φ4.2 mm wire.
Main feature:
1. Capstan Diameter: 400 mm
2. Max.Dies Quantity: 9
3. Main Motor: 110 KW
4. Speed Range: 10 m/s
Description
1. Application:
Aluminum Rod Drawing Machine is used for drawing Al Rod from 9.5 mm to 3.0-4.2 mm with middle speed.
2.Parameters:
| Machine type | SY-LHD400/9 |
| Inlet Dia. (mm) | Ф9.5 |
| Outlet Dia. (mm) | Ф3.0-Ф4.2 |
| Drawing drum Dia. (mm) | Ф400 |
| Max.Die No. | 9 |
| Drawing speed (Max) (m/s) | 10 |
| Main motor (KW) | 110 (DC) |
| Drum arrangement | Horizontal type |
| Drawing drum | Coated by tungsten |
| Drum lubrication type | Immersed type |
| Take-up bobbin | PND 630 / PND 500 |
| Take-up motor (KW) | 22 |
| Take-up bobbin loading type | Pneumatic type |
3.Advantages:

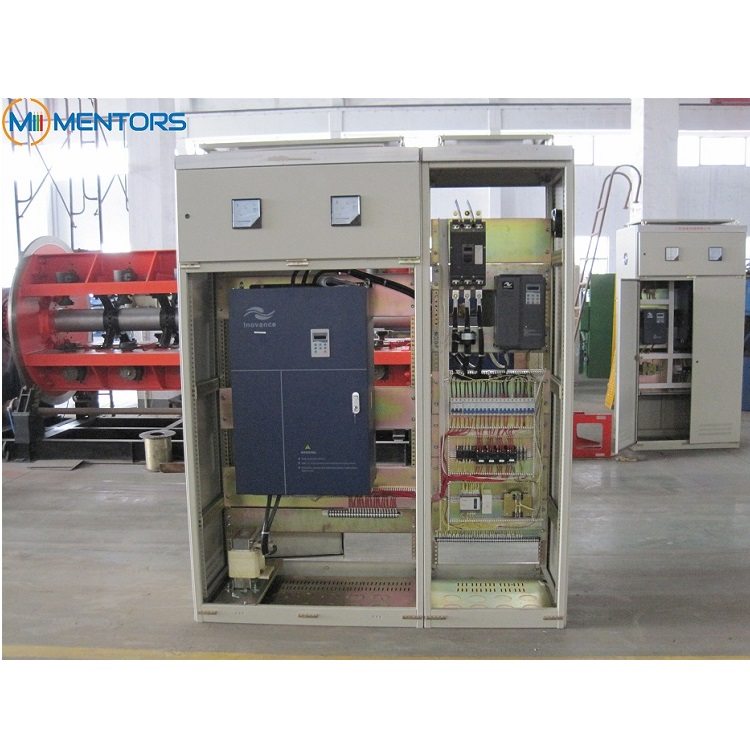

1) Motor With inverter controlled, energy saving.
2) Iron cast gear box body ensure long life with low noise.
3) Precision grinding gear (gear material: 20CrMnTi), with oil lacking protection system.

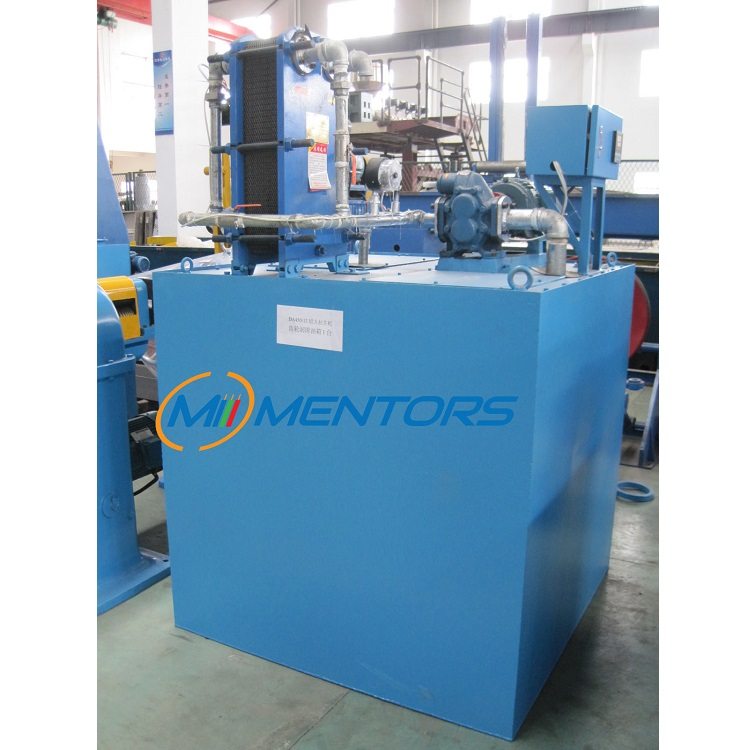

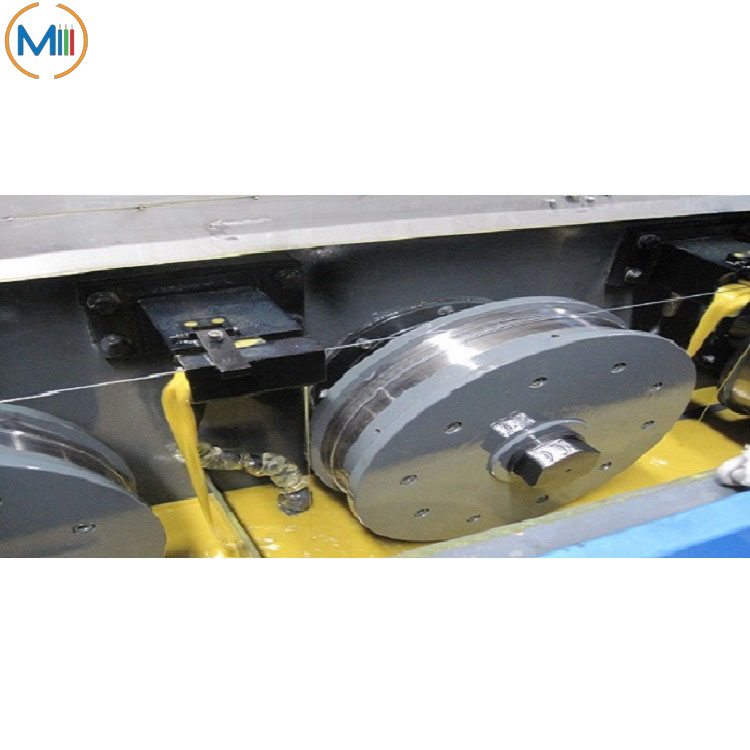

4) Capstans and dies are cooled by both half-submerged and sprayed emulsion to ensure a complete cooling and lubrication.
5) Economical equipment. Max speed range from 10-15m/s. It’s the best choice for middle level factory production request.
4.Delivery time: 60-90 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
