Description
1. Application:

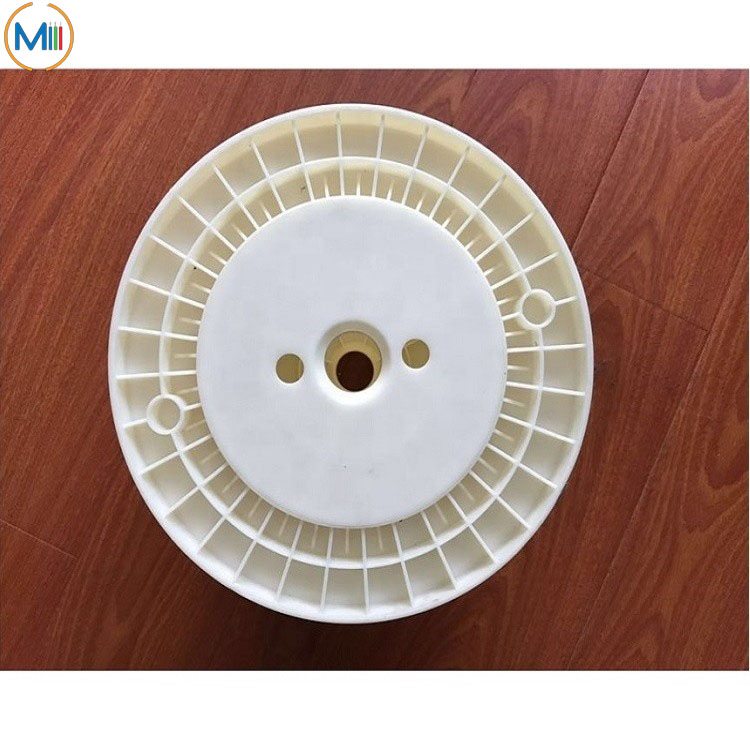

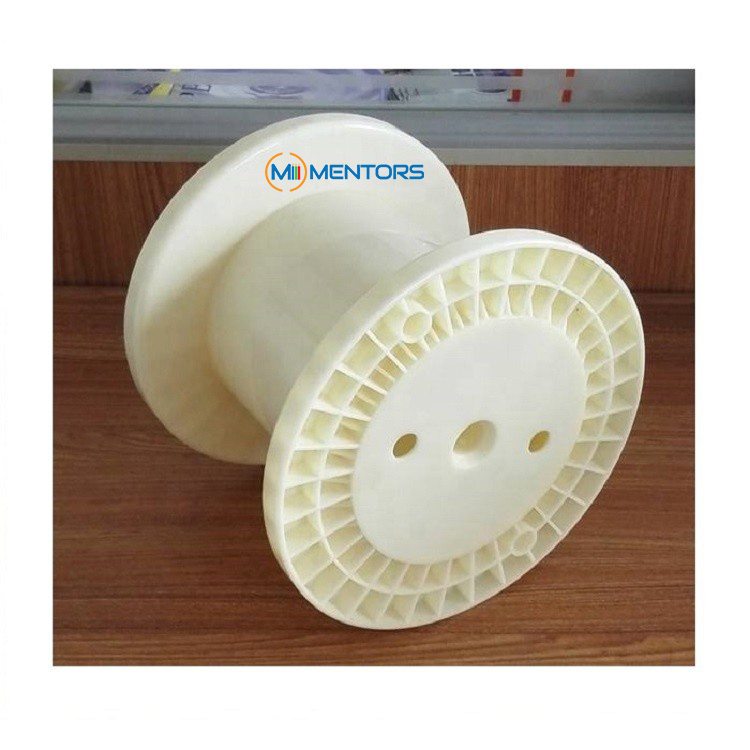

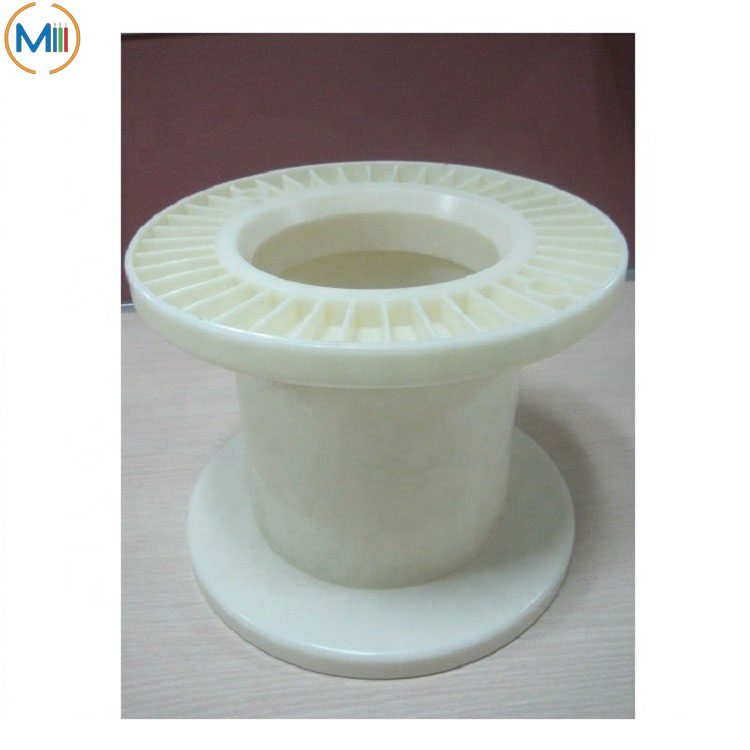

The ABS is a spool for ABS (acrylic-lyer-butadiene symbol) as the main raw material. It is characterized by: high surface brightness, strong material, strong anti-fall and anti-impact, and chemical corrosion. It is generally used as a wire winding with higher quality requirements.It can be used for winding cables, ferrous wire and non-ferrous wire in the pay-off and take-up of wire drawing machine, stranding and bunching Machine etc.
2.Parameters:
| Model specifications | Material | side panel | barrel diameter | total length
L1 |
inner width
L2 |
aperture
d3 |
|
| diameter
d1 |
thickness | ||||||
| PN300 | PS | 300 | 15 | 140 | L2 30 | 30 | |
| PN310 | ABS | 310 | 12 | 130 | 215 | 185 | 25-40 |
| PN355 | ABS | 355 | 20 | 224 | 200 | 160 | 27.5 |
| PN400 | ABS | 400 | 16 | 200 | 300 | 250 | 40-56 |
| PN400 | ABS | 400 | 20 | 200 | 300 | 250 | 55-57 |
| PN500 | ABS | 500 | 20 | 250 | 300 | 250 | 56 |
| PN500 | ABS | 500 | 20 | 250 | 375 | 315 | 56 |
| PN630 | ABS | 630 | 25 | 250 | 475 | 400 | 56 |
| PN630 | ABS | 630 | 25 | 315 | 375 | 300 | 56 |
| PN630 | ABS | 630 | 25 | 315 | 475 | 400 | 56 |
3.Advantages:
1.Unitary body of perfect balance
2.It’s injected by ABS, PS, and other alloy materials.
3.High strength, no kinking, durable, support recycle using
4.Minimum tolerance can reach to 0.05mm.
