1.Application:

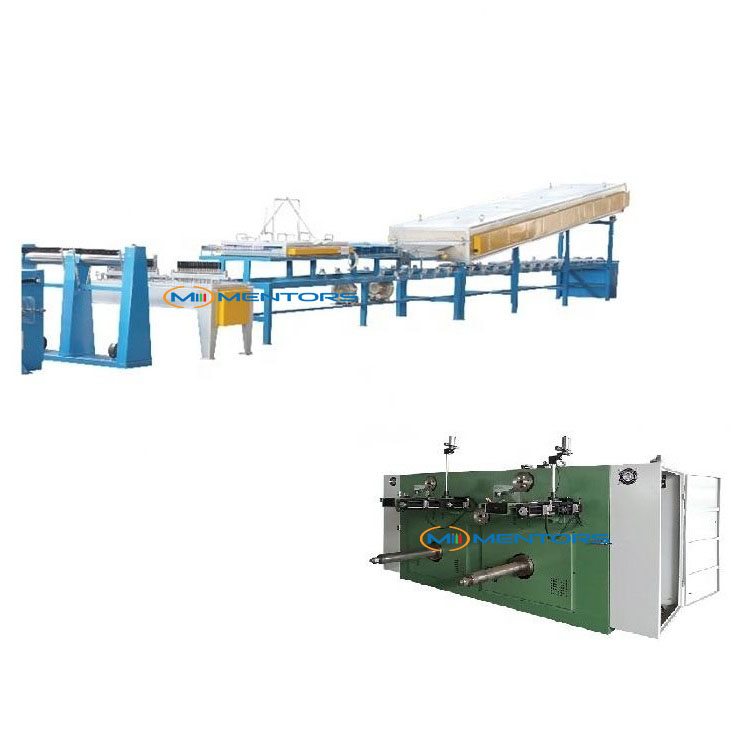

This machine is special for annealing 40 copper wires or CCS Wire 0.15-0.70 mm at the same time.
Finished wire is wound by plastic bobbin.
2.Parameters:
| Machine type | SY-40H/7.5 |
| Length of annealing tank | 7.5 m |
| Wire dia | Φ0.15-Φ0.7mm |

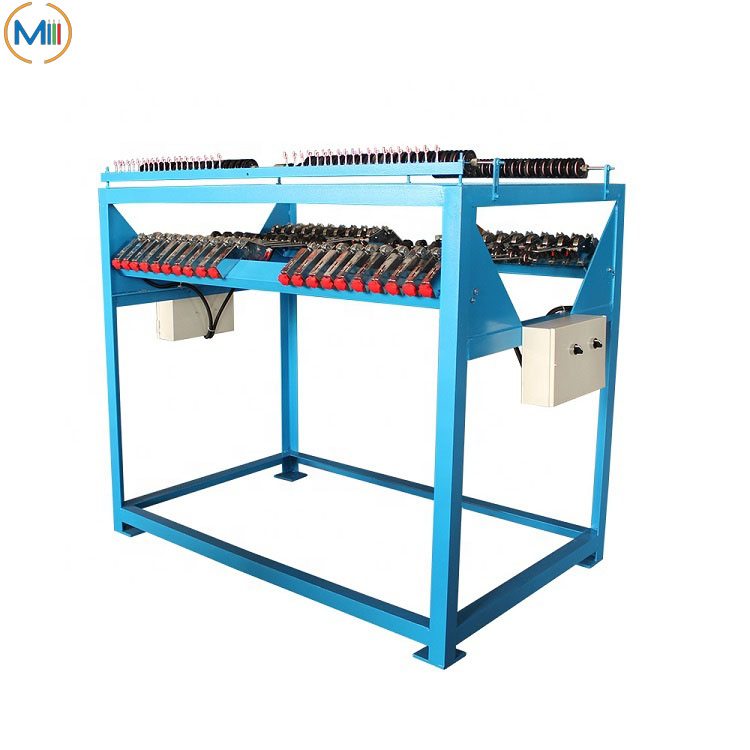

| Pay-off stand | By brush wire |
| Max. speed | 300m/min |
| Tin-coating type | Dual parts by heater(optional) |
| Pay-off bobbin size | Φ300 or customized |
| Spool bobbin size | PT5-PT25 or customized |

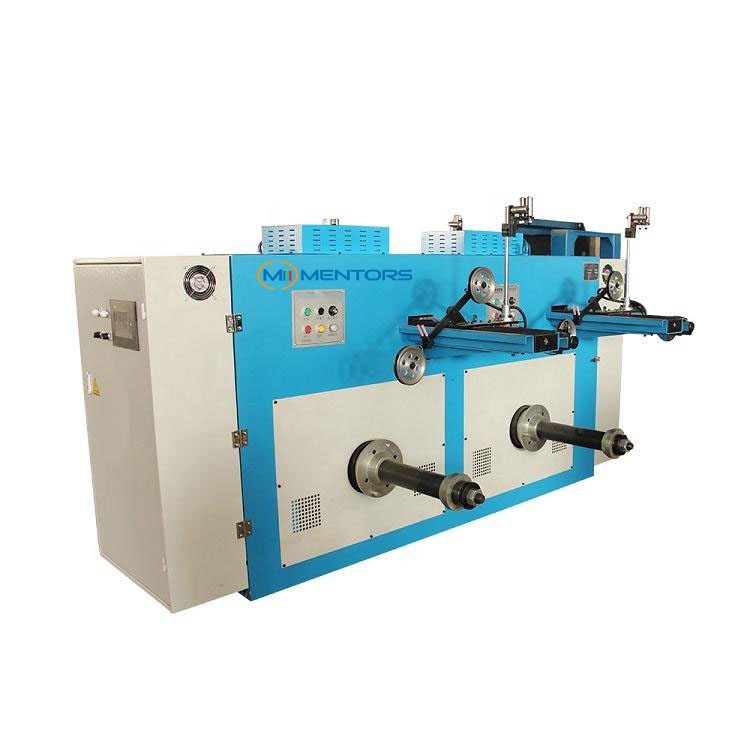

| Take-up type | Single spooler drive by torque motor |
| Annealing type | Continuous annealing by heater |
| Total power consumption | 75KW |
| Machine dimension | 2500L×2200W×1900Hmm |
3.Advantages:
1.Is fit for human’s height. Can be operated easily.
2.Good annealing heat insulation.
3.Save Power.

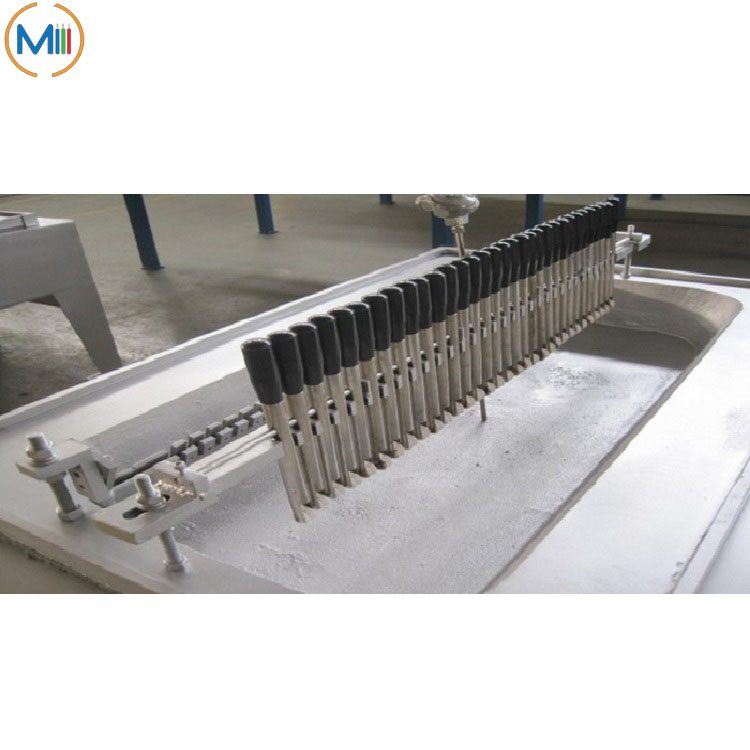

4.Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.
5.Spooler arranged in double layer can save space.
4. How to maintain 7.5M Annealing and Tinning Machine:
1.Do not frequently switch off furnace, which will increase power consumption. Because the annealing machine’s furnace body should be heated again before using after shutting down. Do in this way also will shorten the life of the furnace body at the same time.
2.Regularly check and fasten loose parts, and check whether the parts and components are complete.
3.Disassemble, check and adjust the main part of the equipment, and replace the parts that have reached the wear limit. In addition, the wear and tear of the main components should be measured and identified in order to obtain technical data as a basis for the preparation of repair plans.
5.Delivery time: 30-45 working days
6.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7.Guarantee: 12 months since shipping date(exclude easily wearing part)
