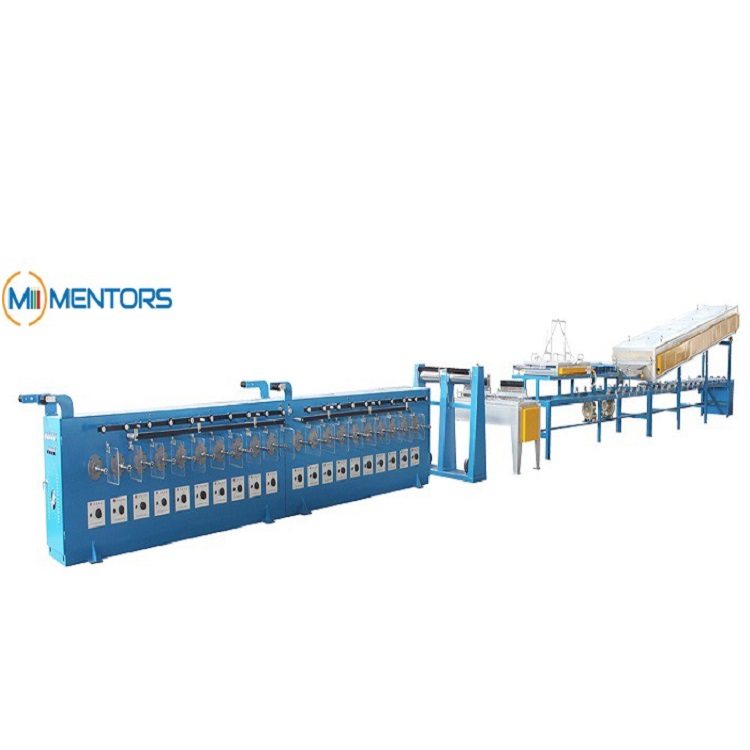

This machine is special used for annealing and tinning 40 to 60 copper wires 0.08-0.32 mm at the same time.
Finished wire is can be winded by small plastic bobbin or bigger 630 spool .
Main Feature:
(1)Wire Dia: 0.1-0.65 mm
(2)Drawing Speed: 5 m/s
(3)Single or double layer
1. Application:
This machine is specially used for annealing and tinning 40 to 60 copper wires 0.08-0.32 mm at the same time.
The finished wire can be winded by a small plastic bobbin or a bigger 630 spool.

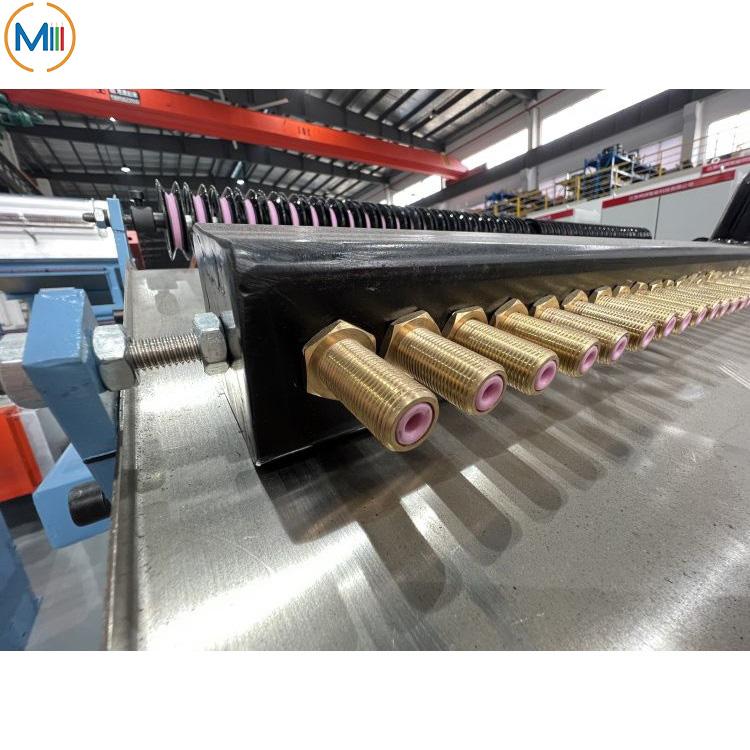

The tinning channel adopts a one-piece casting HT200. It is heated by 40 pieces of 2kw heating pipes. Annealing pipes are 321 stainless steel pipes, which is acid proof and corrosion resistance. Heating pipes are high temperature and corrosion resistance stainless steel’2520’ pipes.
2. Parameters:
| Machine type | SY-40H/6 |
| Length of annealing tank | 6m |
| Wire dia | Φ0.10-Φ0.65mm |
| Pay-off stand | By brush wire |
| Max. speed | 300m/min |
| Tin-coating type | Dual tank by heater(optional) |
| Pay-off bobbin size | Φ300 or customized |
| Spool bobbin size | PT5-PT25 or customized |
| Take-up type | Single spooler drive by torque motor |
| Annealer | Continuous annealing by heater |
| Total power consumption | 65KW |
| Machine dimension | 20000L×2200W×1900Hmm |
3. Advantages:
(1)Add one room inside the annealing, which can make the temperature impartial distribution.
(2)It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
(3)Support steel for the annealing tube won’t touch the up and down side of the annealing body, the heat won’t be dissipated quickly.
(4)Dual tinning tank design, it can produce two kinds of tin-coating copper wire at the same time.

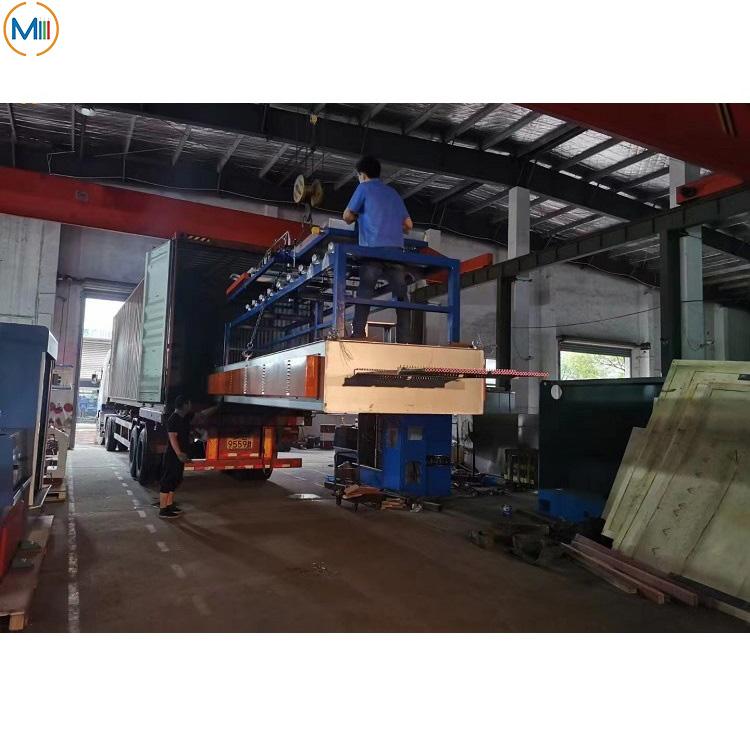

4. Delivery time: 30-45 working days
5. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage.
6. Guarantee: 12 months since shipping date(exclude easily wearing part)
