1. Application:

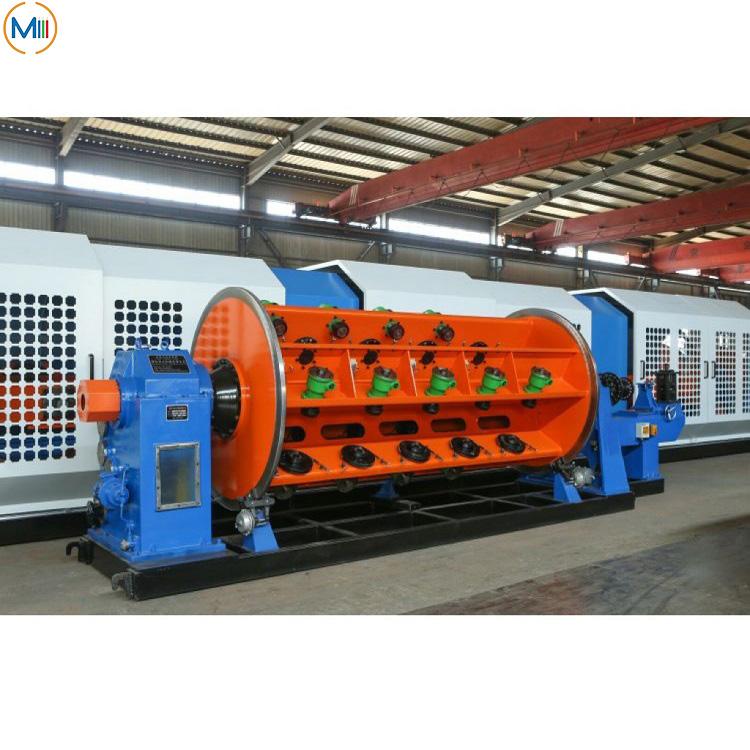

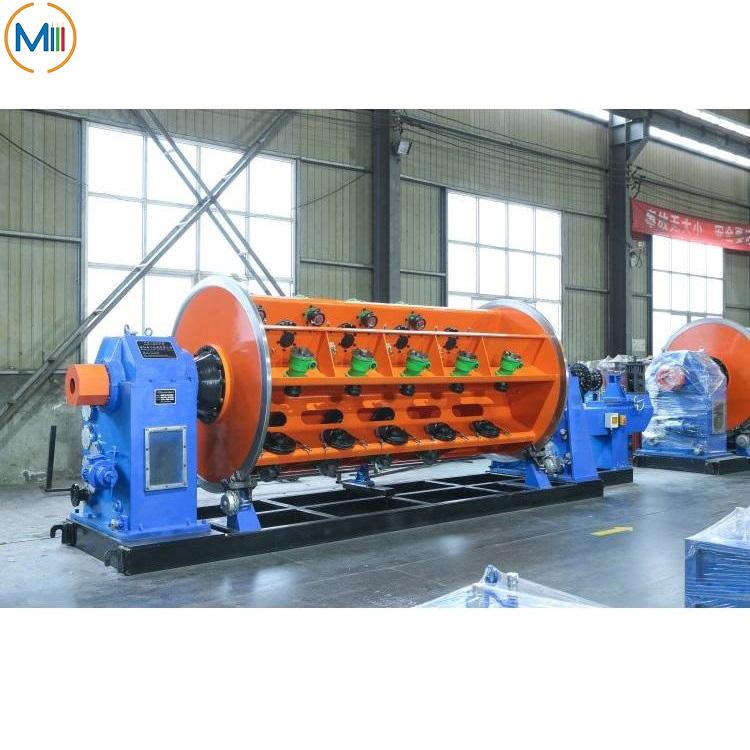

630 Rigid Frame Stranding Machine is used for stranding wire especially for power cables.
2.Parameters:
| Machine | SY-KJ630 | |
| Standing single wire Dia.(mm) | Copper | Φ1.50-Φ4.50 |
| Al alloy | Φ1.80-Φ5.00 | |
| Aluminum | Φ1.80-Φ5.00 | |
| Max.cage rotate speed(rmp) | 6 Bobbins | 192 |
| 12 Bobbins | 173 | |
| 18 Bobbins | 124 | |
| 24 Bobbins | 117 | |
| 30 Bobbins | 90 | |
| Pay-off reel in cage | PND630 | |
| Central pay-off reel | PND630-PND2000 | |
| Take-up reel | PND1600-PND3150 | |
| Control type | PLC+touch screen | |
3.Advantages:
1. Whole welding instead of separate welding.
2. One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out. The maximum pulling force is 15T. Each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.

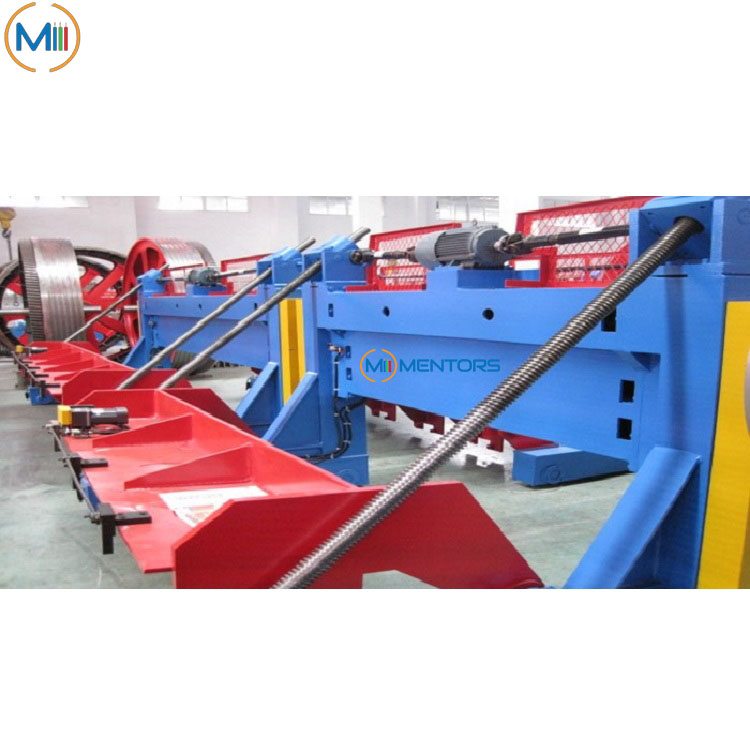

3. Reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more,the equipment has high-powered, high speed.

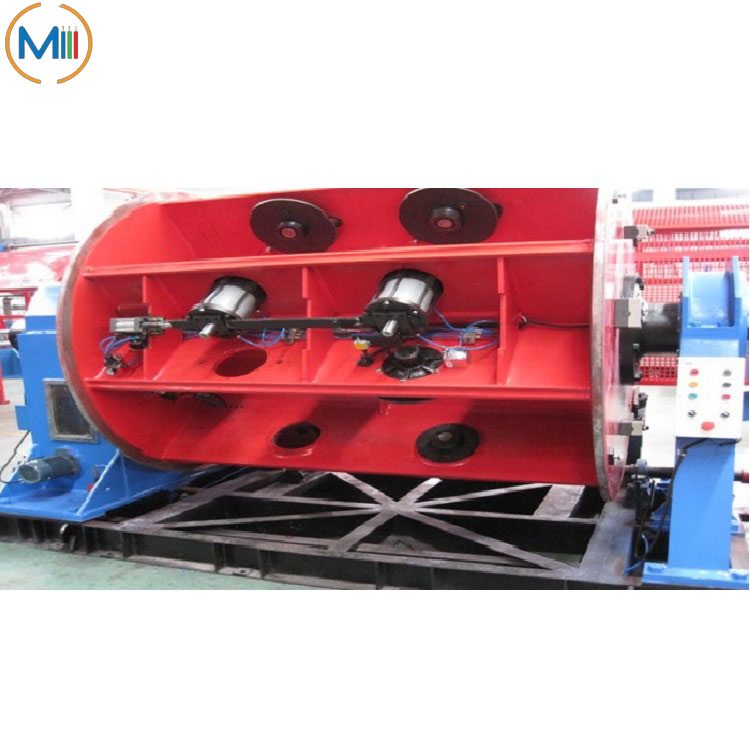

4. The four joints of the hinge are all one-piece quartered structures. The hinged cage is supported by the gearbox, the front part is supported by two sets of double-row self-aligning bearings respectively.
5. The pay-off tension of the Wire Buncher Machine is controlled pneumatically. Tension is obtained by a pneumatic friction device.
6. Pneumatic proportional valves, electrical monitoring devices, etc. are coordinated and controlled by PLC. The tension is uniform and constant.
4.Delivery time: 90-120 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
