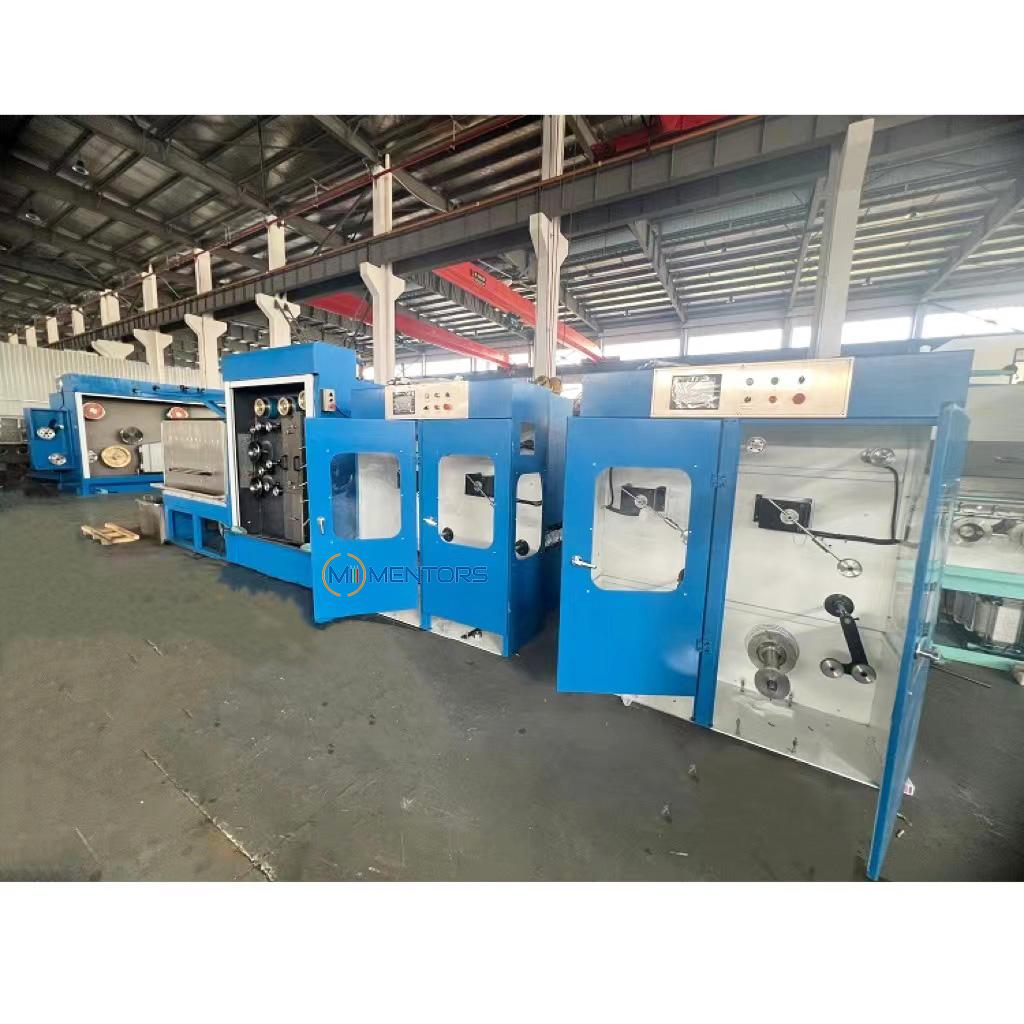

4 Wires Multiwire Drawing Machine with Annealing
Main feature:
1) Wire quantity: 4 wires
2) Max.Inlet wire: 1.2mm, outlet wire: 0.18-0.42mm
3) Raw material: pure copper
Description
1. Application:
This Multi Wire Copper Wire Drawing Machine has four wires and is mainly used for drawing copper wire from 1.2mm to 0.18-0.42 mm wire.
2.Main feature:
1) Wire quantity: 4 wires
2) Max.Inlet wire: 1.2mm, outlet wire: 0.18-0.42mm
3) Raw material: pure copper
3. Parameters:
| Machine Type | SY-DT22/4 |
| Drawing Wire No. | 4 Wires |
| Max. Die No. | 22 |
| Max.Inlet Dia.(mm) | 1.2 |
| Outlet Dia.(mm) | 0.18 ~ 0.42 |
| Max.Drawing Speed.(m/s) | 25 |
| Capstan | Ceramic coated or Zirconium |
4. Advantage:
1) Simultaneous drawing and annealing of 4 wires effectively ensures the uniformity of wire quality, which can effectively improve production efficiency, reduce production costs, and have high economic benefits.

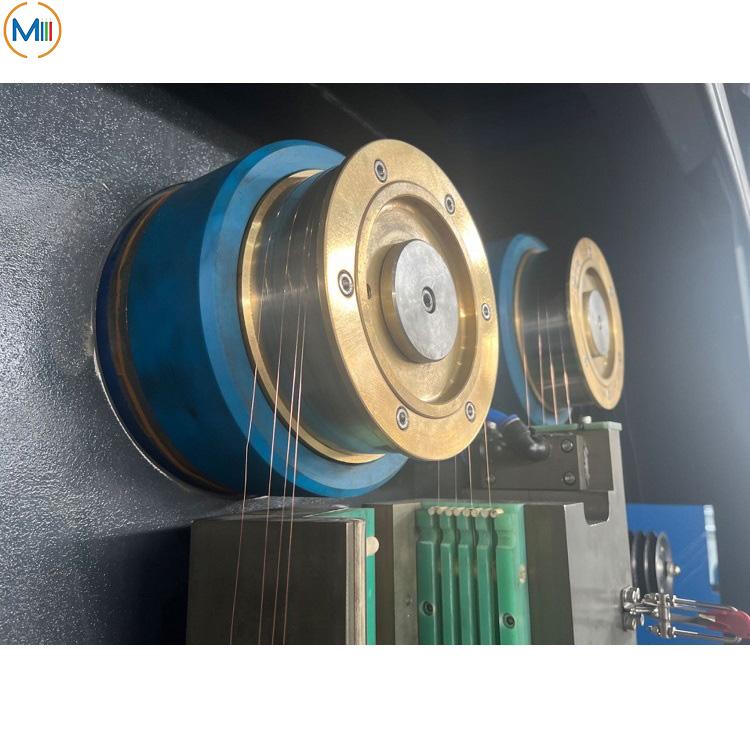

2) The annealing voltage is fully digitally controlled, automatically tracks the drawing machine speed, and is individually adjustable.

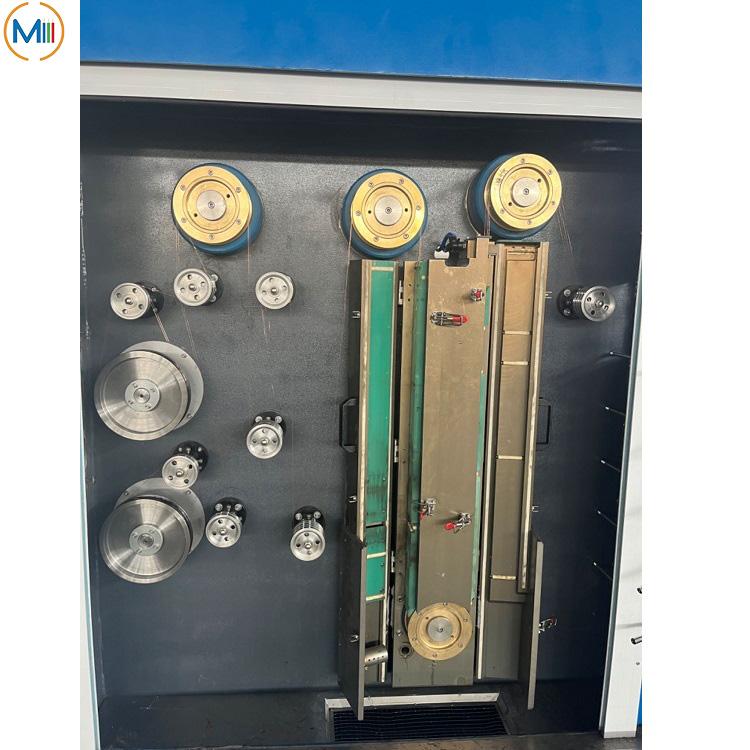

3) Annealing door is made of aluminum alloy instead of casting aluminum, the life at least have three years.

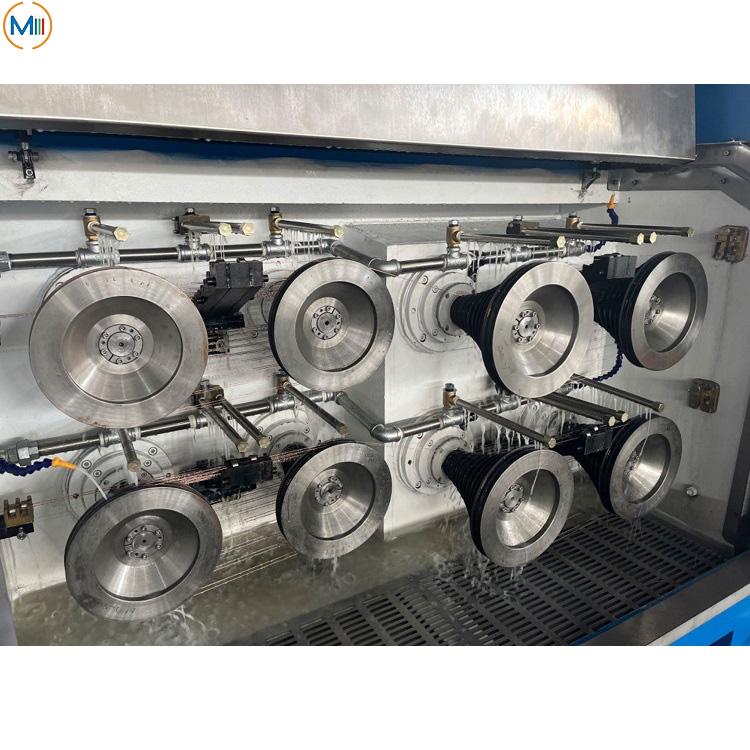

4) The pipes in the eye mold frame are sprayed for cooling and lubrication, which is convenient for cooling during threading; and movable water pipes are installed above the wire drawing capstans to lubricate and cool the capstans.
5. Delivery time: 60-90 working days
6. After-sell service:
Engineer will be dispatched at needed
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
