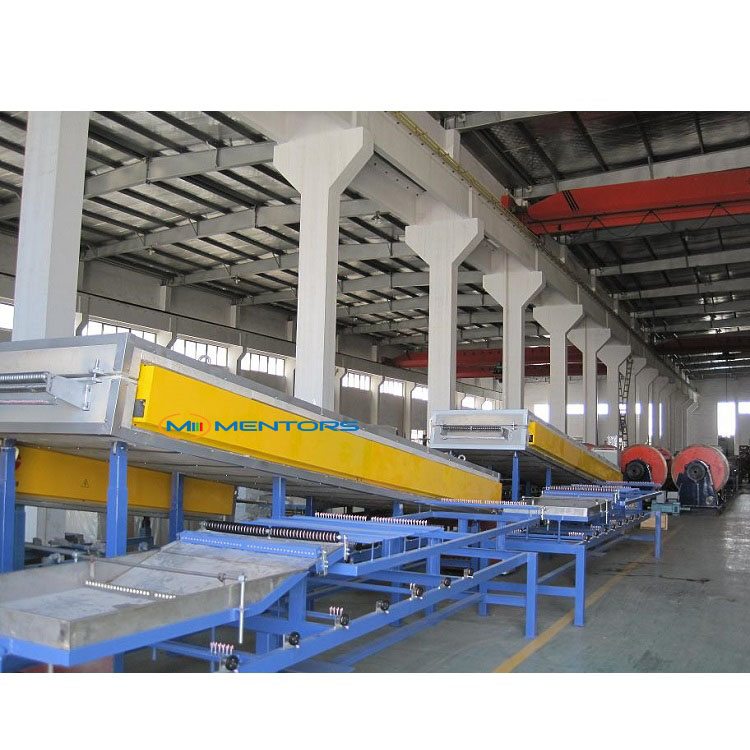

The annealing body length of the Annealing and Tinning Machine is 4.5m.
The water tank is re-cycle design and with water tank and pump.
The two ends of the hauling drum with revolving joints and can connect the re-cycle water for cooling.
Main feature:
(1) Max.Wires Quantity: 40
(2) Max speed: 300 m/min
(3) Annealing Body Length: 4.5 m
(4) Temperature Preservation: four insulation layers
1.Application:
This machine is special for annealing 40 copper wires 0.08-0.32 mm at the same time.
2.Parameters:
| Machine type | SY-40H/4.5 |
| Length of annealing tank | 4.5 m |
| Wire dia | 0.08-0.32 mm |
| Pay-off stand | By brush wire |
| Max. speed | 300m/min |

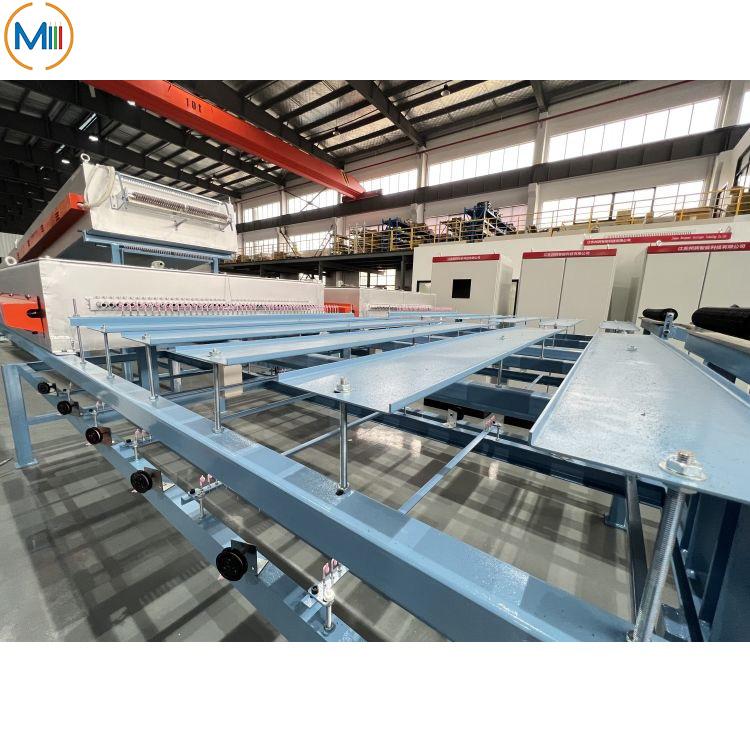

| Tin-coating type | Dual parts by heater(optional) |
| Pay-off bobbin size | Φ300 or customized |
| Spool bobbin size | PT5-PT25 or customized |
| Take-up type | Single spooler drive by torque motor |
| Annealing type | Continuous annealing by heater |
| Total power consumption | 75KW |
| Machine dimension | 25000L×2200W×1900Hmm |
3.Advantages:
1.Add one room inside the annealing, which can make the temperature impartial distribution.
2.It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
3.Support steel for annealing tube won’t touch up and down site of the annealing body,the heat won’t be dissipated quickly.

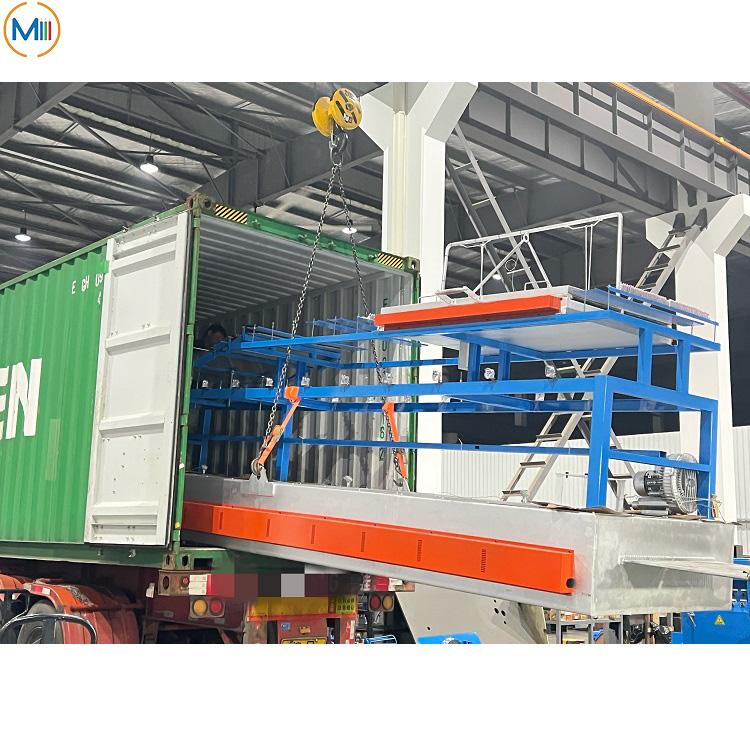

4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
