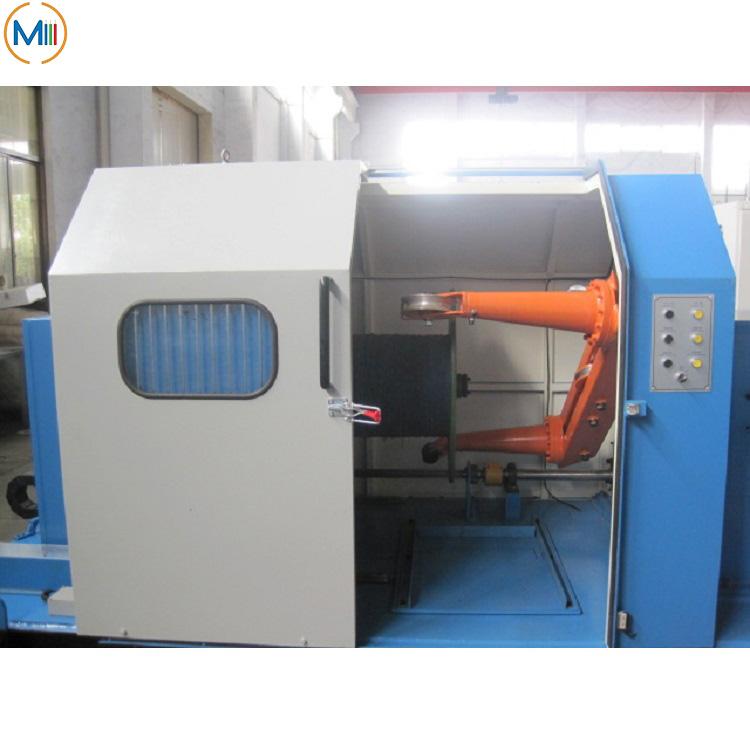

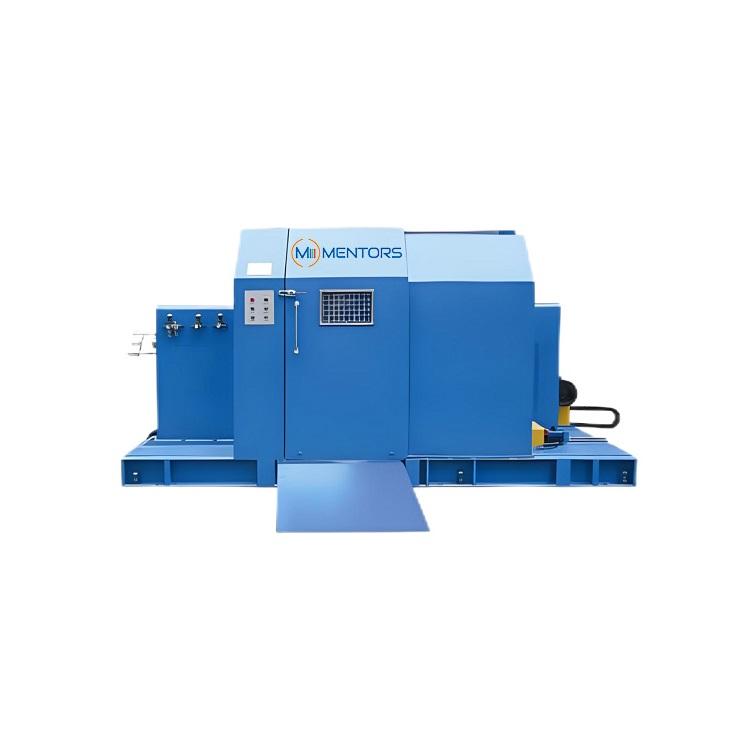

1250 Cantilever Type Single Twist Machine
Main feature:
1) Core size: ø1.0mm- ø5.0mm.
2) Finished wire diameter: Max.ø28mm
3) Twist pitch: 30-350mm
0086-13962242532
sunman@mentorsmachinery.com
Main feature:
1) Core size: ø1.0mm- ø5.0mm.
2) Finished wire diameter: Max.ø28mm
3) Twist pitch: 30-350mm
1. Application:
This cantilever single twist machine is used for the twist and tapping of all kinds of data cables, soft conductor, computer cable, rubber cable, KVVRP, KVVR, RVV, KVV, etc.
2. Main feature:
1) Core size: ø1.0mm- ø5.0mm.
2) Finished wire diameter: Max.ø28mm
3) Twist pitch: 30-350mm
3. Parameters:
Core size | ø1.0mm- ø5.0mm |
Finished wire diameter | Max.ø28mm |
Twist pitch | 30-350mm |
Pay-off bobbin size | ø630mm(To fit customer demand) |
Take-up bobbin size | ø1250mm(OD)×80(BORE)×950(OW)×800(IW) |
Rotate speed of center wrapping machine | Normal working speed 2000r/min |
Rotate speed of the main machine | 400r/min. |
Twist direction | “S”/“Z can be chosen freely. |
Power source | 380V, 3 PHASE, 60HZ or customized |
4. Advantage:

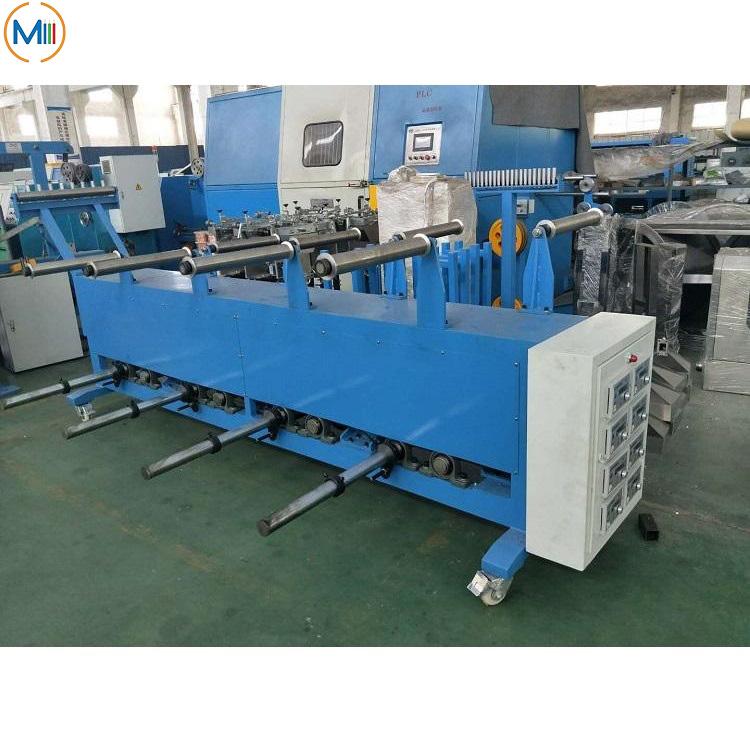

1)The pay-off stand is made of high-quality steel, which is sturdy and beautiful. The pay-off tension is controlled by the shaft-type magnetic tension.
2)The motor drives the screw rod to traverse the wire through the reciprocating motion of the wire take-up. Frequency converter speed regulation, at the same time it can realize the functions of fast forward and fast rewind.
3)External meter counting, predict deceleration when the meter reaches, and stop when the meter reaches.
4)Safety door limit protection, traversing double insurance limit, prevent stroke.
5)The color touch screen can realize man-machine interface operation, twisting pitch length, speed, and meter can be recorded, displayed, and preset at any time, it also has a common fault display.
5. Delivery time: 45-60 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
