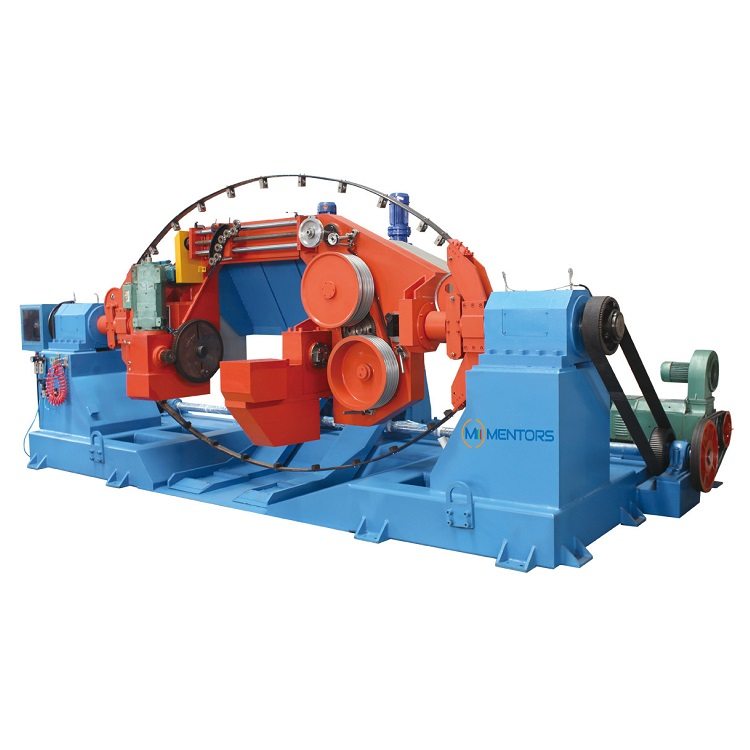

1250 Automatic Wire Buncher
This type is used for twisting copper or Aluminum wire with 7 wires.
Main feature:
1)Take-up bobbin: 1250
2)Max speed: 800 r/min
3) Raw material: copper wire, Aluminum wire
4) Twisting type: double twist
0086-13962242532
sunman@mentorsmachinery.com
This type is used for twisting copper or Aluminum wire with 7 wires.
Main feature:
1)Take-up bobbin: 1250
2)Max speed: 800 r/min
3) Raw material: copper wire, Aluminum wire
4) Twisting type: double twist
1. Application:
This type machine is used for twisting bare copper or aluminum wire with big size.
2-Parameters:
Machine type | SY-1250 |

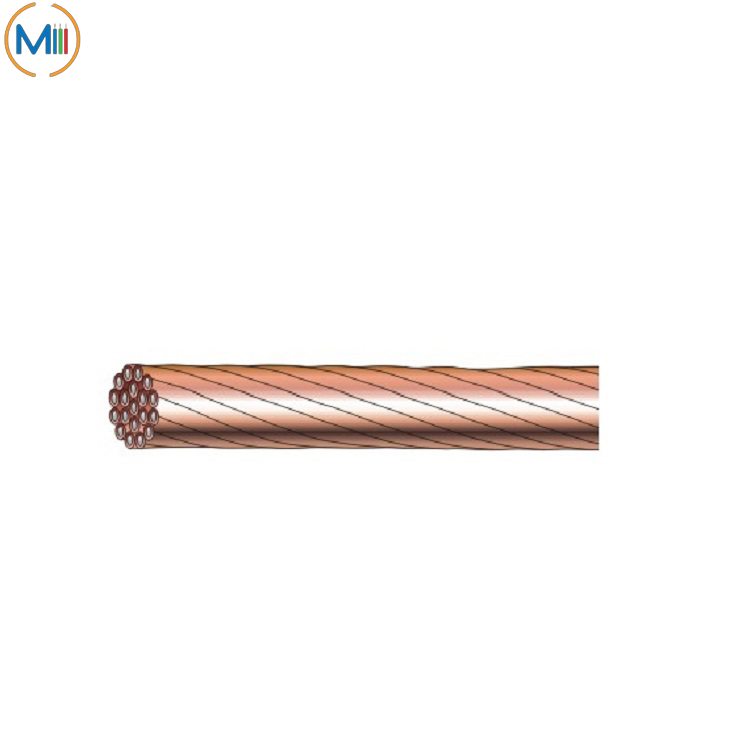

Wire product of stand | Twisting 7 copper wires or aluminum wire |
Cooper wire individual | Φ1.0-3.0 MM |
Finish stranded wire/max. | 10 mm φ/max |
Finish stranded wire/Max. | 15mm φ/max |
Section of strand-twisting
(Flexible strand) |
3.5÷70mm2(6AWG÷450MCM) |
Section of strand-twisting
(Semi-frame twisting 1+6) |
3.5÷50mm2(6÷1/0AWG) |
Section of compaction Cu | 3.5÷50mm2(6AWG÷300MCM) |
Section of compaction Al | 3.5÷70mm2(6AWG÷301MCM) |
Line speed/Max. | 150mpm/max |
Stand pitch(mm) | 40-350mm |
Rotate speed | 8000rpm/max.(1600TPM) |
Load weight/Max. | 3000KG |
Standing Direction | S,Z Direction |
Main motor(DC/AC/HP) | 45kw D.C. motor |
Drive of Capstan(DC/AC/HP) | 30kw D.C. motor |
Drive of take-up unit(DC/AC/HP) | 7.5kw D.C. motor |
Drive of traverser | 0.75kw Inverter motor |
Drive of loading&unloading | 1.5kw Inverter motor |

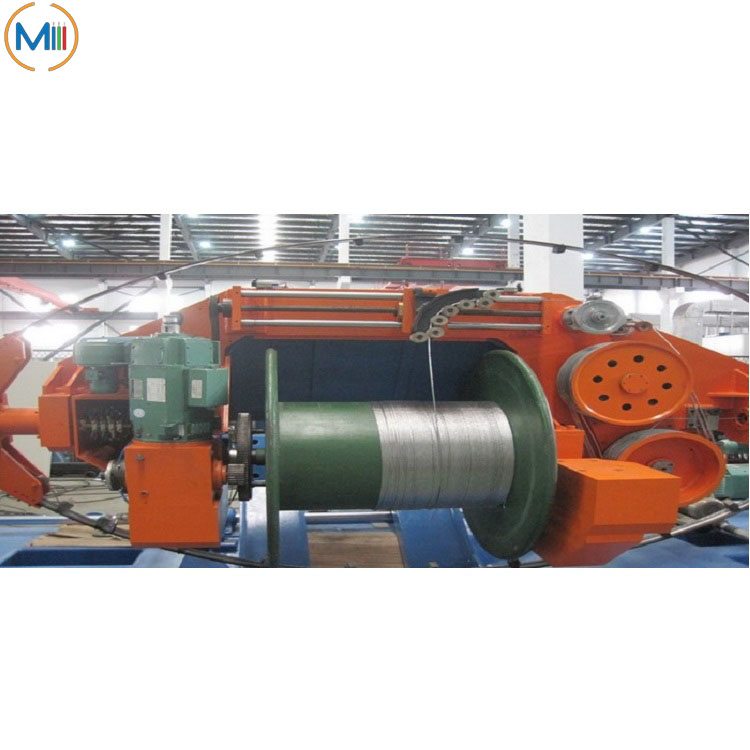

Take-up bobbin size | 1250mm |
3.Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
3) Take-up tension is controlled by magnetic powder clutch or mechanical type.
4) If the wire breaks, the machine can stop automatically.
4.Delivery time: 45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
